PondScape Rocking Piston Pond & Lake Aeration Compressor – Oil-Free, 1/4 to 1 HP

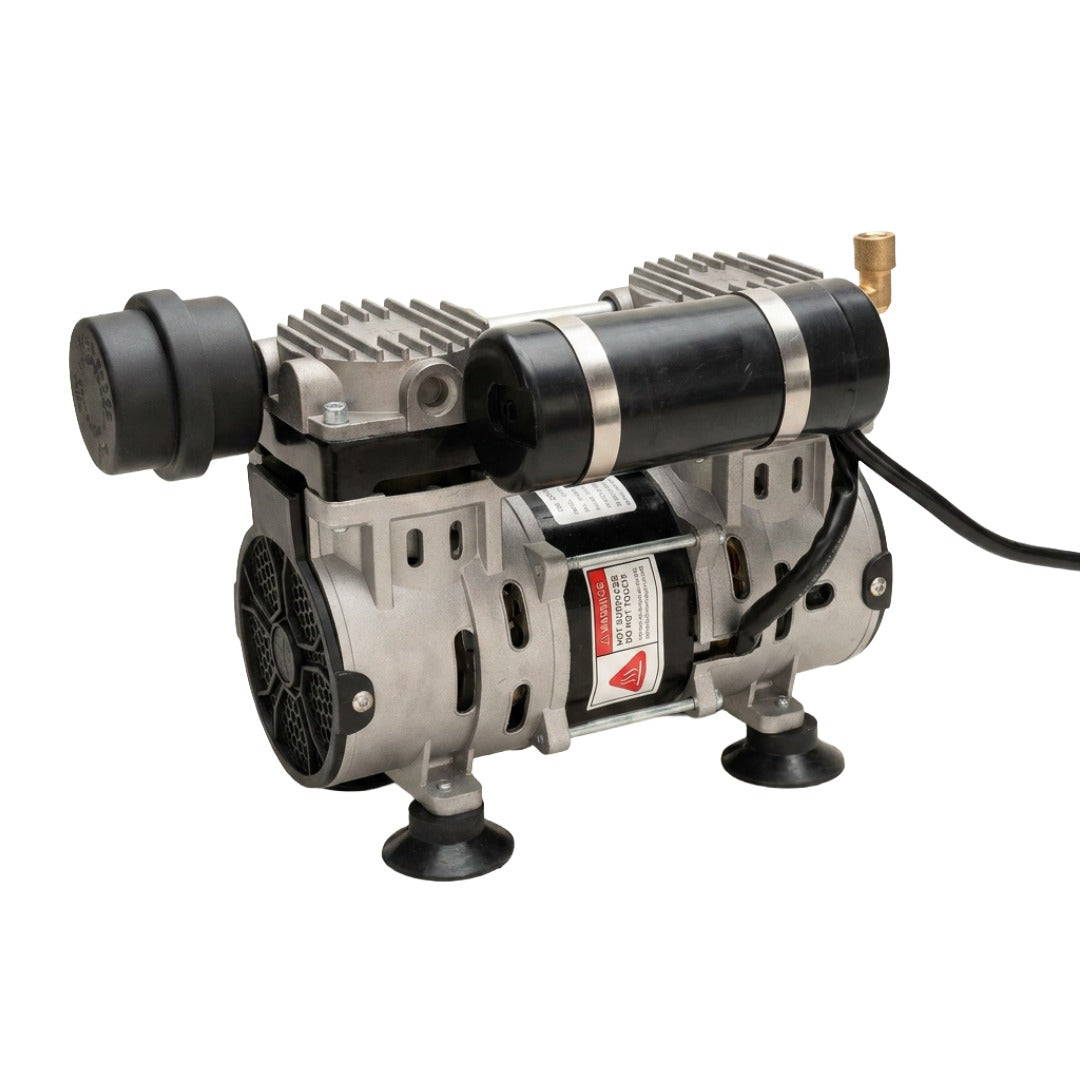

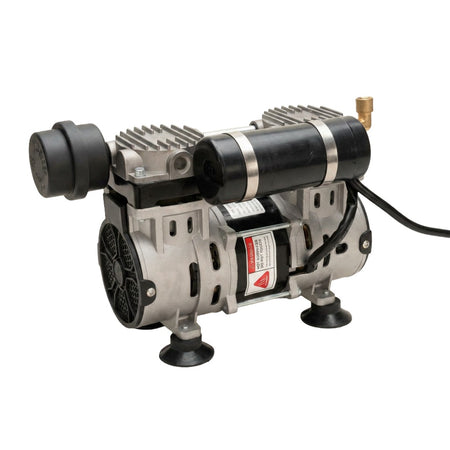

PondScape Rocking Piston Pond & Lake Aeration Compressor
Deliver powerful, dependable aeration to large ponds, lakes, and water features with the PondScape Rocking Piston Aeration Compressor. Available in four sizes from 1/4 HP to 1 HP, these oil-free compressors provide the high-volume airflow needed to operate bottom-diffused aeration systems and help improve circulation and oxygen levels throughout the water column.
Powerful Rocking Piston Technology
PondScape compressors use a rocking piston design engineered for continuous, dependable air delivery in pond and lake aeration applications. Rocking piston compressors are an excellent choice for bottom-diffused aeration systems where strong airflow and reliable operation are required.
A properly designed bottom-diffused aeration system moves compressed air through submerged diffusers, creating rising columns of bubbles that circulate water from the bottom toward the surface. This circulation helps reduce stagnant areas, improve oxygen distribution, and support better overall water quality and a healthier aquatic environment.
PondScape compressors are available with airflow capacities from 30 to 160 liters per minute, allowing you to select the appropriate compressor for your system and number of diffusers.
Oil-Free, Low-Maintenance Design

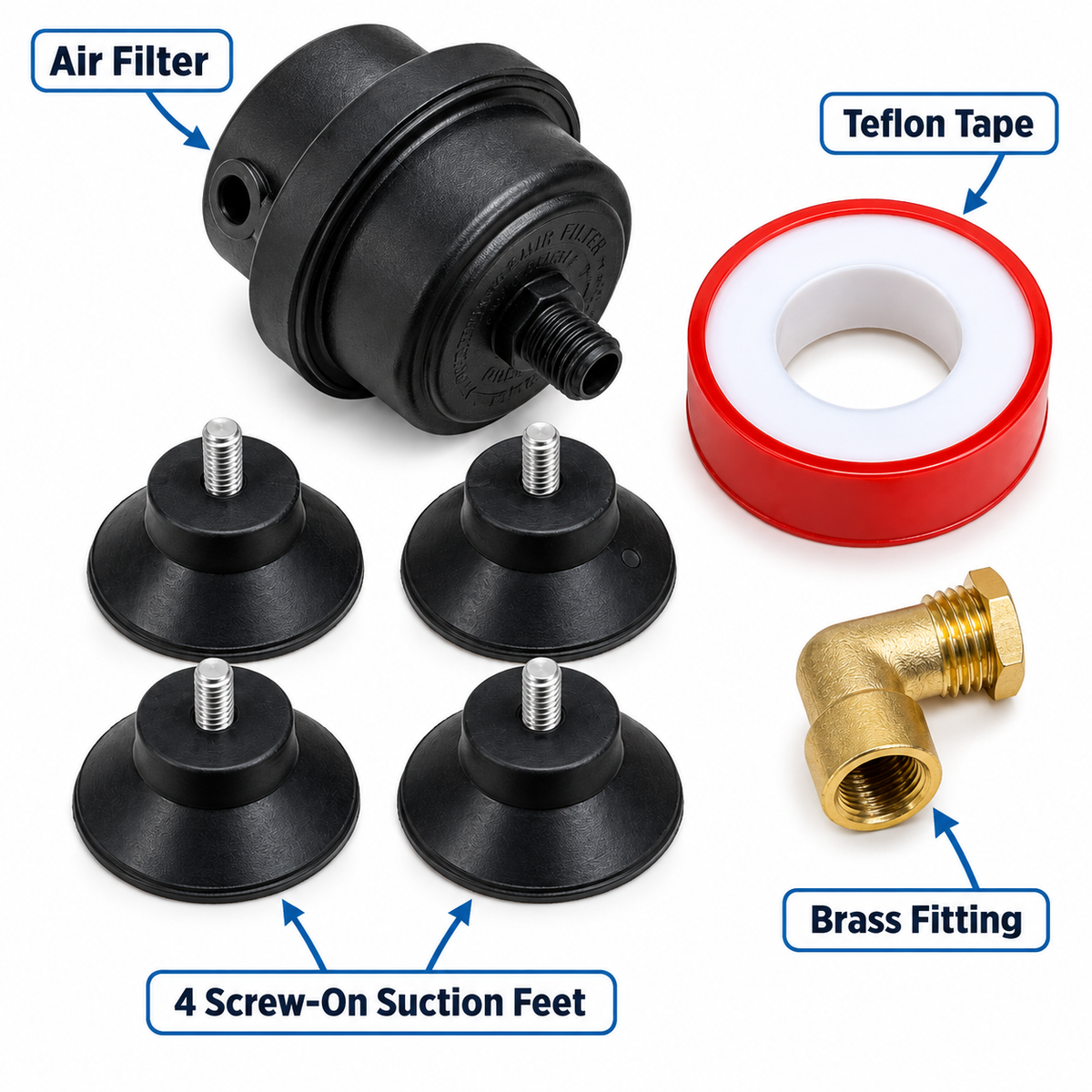

The oil-free rocking piston design eliminates the need for routine oil changes while providing clean, dependable air delivery. Each 110V compressor features a high-quality capacitor and an integrated air filter/silencer for reliable operation.
Suction-cup feet help isolate vibration and reduce operating noise. The feet are also threaded, allowing the compressor to be securely mounted inside a compatible aeration cabinet.
Rebuildable for Long-Term Service
Unlike equipment that must be replaced when internal wear components reach the end of their service life, these PondScape rocking piston compressors are rebuildable.
Replacement rebuild kits are available, allowing common wear components to be serviced rather than replacing the entire compressor. The rebuild process is straightforward and can be completed with basic mechanical skills and common hand tools, helping extend the useful life of your aeration compressor.
Choose Your Compressor
1/4 HP – 30 L/min
- Supports up to 2 diffusers
- Single air outlet
- 110V
- Dimensions: 9"L × 6"W × 8"H
- Manifold required when operating multiple diffusers
1/2 HP – 70 L/min
- Supports up to 3 diffusers
- Single air outlet
- 110V
- Dimensions: 9"L × 6"W × 8"H
- Manifold required when operating multiple diffusers
3/4 HP – 130 L/min
- Supports up to 4 diffusers
- Dual air outlets
- 110V
- Dimensions: 10.5"L × 6"W × 9"H
- Two separate manifolds required when distributing air to multiple diffusers
1 HP – 160 L/min
- Supports up to 6 diffusers
- Dual air outlets
- 110V
- Dimensions: 11"L × 6"W × 10"H
- Two separate manifolds required when distributing air to multiple diffusers
Ideal for Pond & Lake Aeration
These compressors are well suited for:
- Large ponds
- Farm ponds
- Fish ponds
- Koi ponds
- Small lakes
- Water features
- Bottom-diffused aeration systems
- Replacement compressors for existing pond and lake aeration systems
Built to Perform. Designed to Be Serviced.
With rocking piston technology, oil-free operation, replaceable wear components, and available rebuild kits, PondScape aeration compressors provide a serviceable, long-term solution for pond and lake aeration.
Please Note: This product includes the aeration compressor only. Airline, diffuser(s), manifold(s), cabinet, and other aeration components are sold separately unless specifically stated otherwise.
Choose the compressor size that matches your aeration system's airflow requirements and number of diffusers.
