Oase Proficlear XL Moving Bed Module
High-Performance Biological Filtration for Large Ponds
The OASE ProfiClear XL Moving Bed Module delivers powerful biological filtration for large natural ponds, swimming ponds, and koi ponds while requiring minimal space. It is designed for pond owners who want outstanding water quality, high pollutant removal, and dependable performance from a modular filtration system.

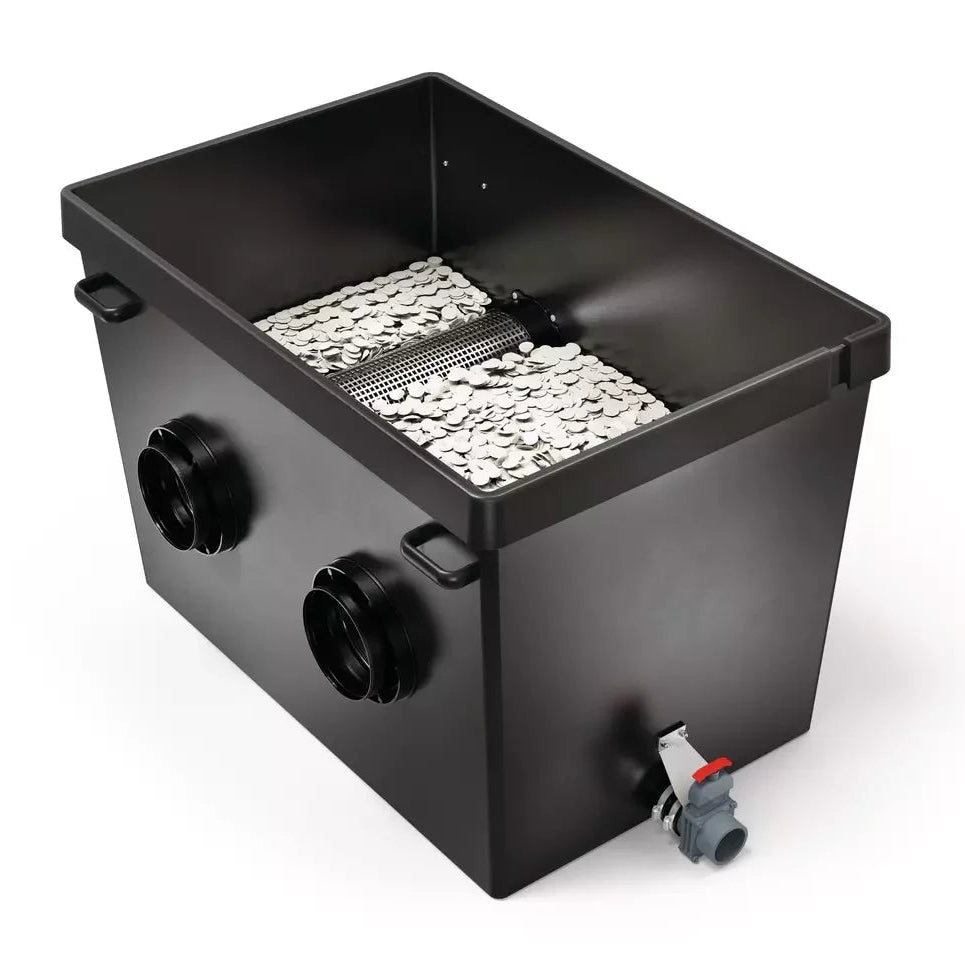

Inside the module, OASE PondPads filter media move continuously in a fluidized-bed process. This creates an extensive protected surface where beneficial bacteria can break down ammonium, ammonia, nitrite, and nitrate. The module can hold up to 150 liters of Hel-X media, providing extra biological capacity for demanding pond systems.
Key Benefits
- Supports large natural and swimming ponds up to 530 m³ and koi ponds up to 100 m³
- High-performance moving-bed filtration promotes effective pollutant breakdown
- OASE PondPads biofilter media provide a large protected biological surface
- Can be used with gravity-fed or pump-fed systems
- Aeration is pre-installed for convenient setup
- Includes a pollutant discharge with slide valve
Specifications
- Dimensions: 52.5 × 34.5 × 32.25 in.
- Net weight: 83 kg (182 lb.)
- Limited warranty: 2 + 1 years
- Protected biological filter surface: 3,550 sq. ft. (330 m²)
- Inlets: 2 × 180 mm
- Outlets: 2 × 180 mm
- Sludge discharge connection: DN 75
- Minimum flow rate: 6,600 gal./h (25,000 l/h)
- Maximum flow rate: 17,435 gal./h (66,000 l/h)
- Installation height above water level: 3.35 in. (8.5 cm)
- Temperature display: No
Compatible Equipment
Compatible with AquaOxy 5000, ProfiClear Premium DF-XL pump-fed and gravity-fed units, and ProfiClear Premium XL pump-fed and gravity-fed drain modules.
