Home » Oase Proficlear Premium XL Pump Fed Discharge Module

Oase Proficlear Premium XL Pump Fed Discharge Module

SKU: 95201
$4,047.99

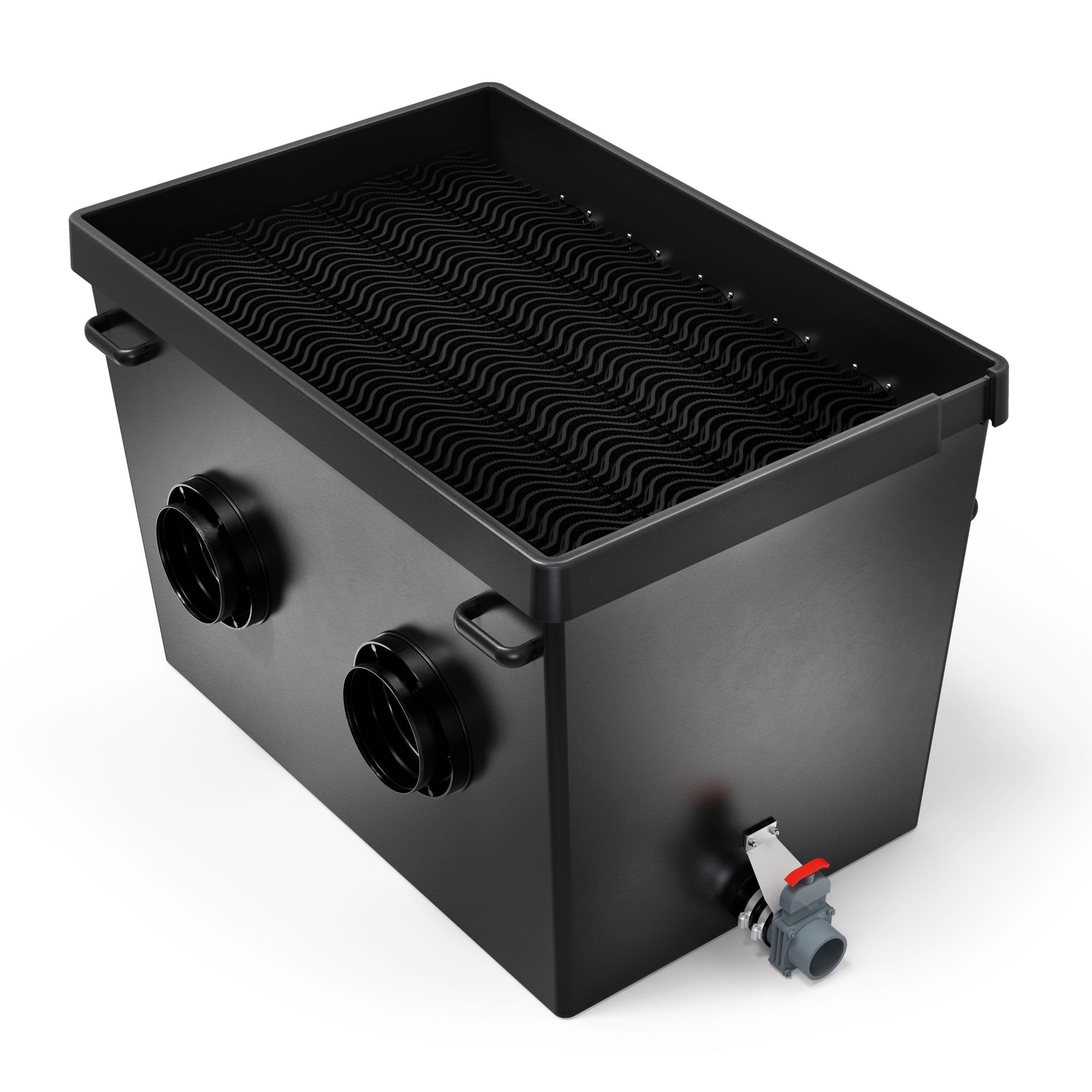

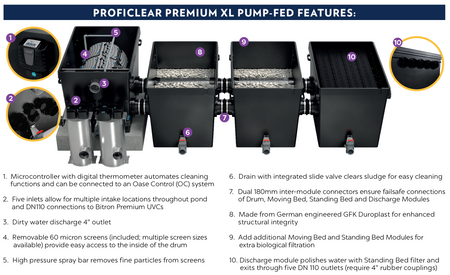

The OASE ProfiClear Premium XL Pump-Fed Discharge Module is the final component in pump-fed ProfiClear XL systems. This module provides additional biological filtration using ClearWave standing bed media and features five flexible outlet connections for returning clean water to your pond via multiple streams, waterfalls, or features.

Key Features:

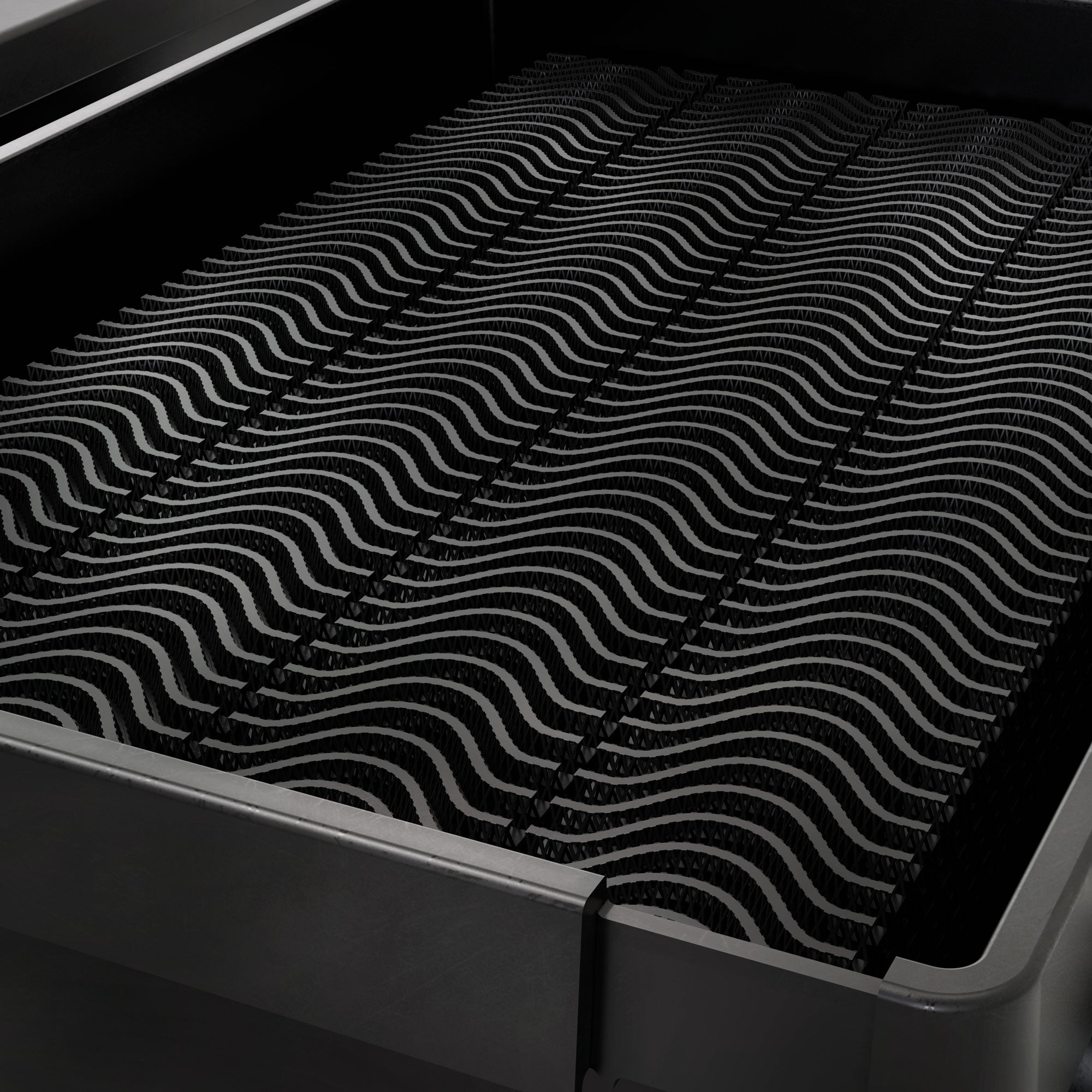

  • ClearWave standing bed media for superior biological filtration
  • Five 4" (DN 110) outlets provide maximum plumbing flexibility
  • Return water to multiple locations: waterfalls, streams, fountains, or pond returns
  • Integrated sludge drain for easy flushing and maintenance
  • Final module in pump-fed ProfiClear XL systems
  • Handles high flow rates: 6,600 - 13,200 GPH
  • 3-year warranty (2-year + 1)
  • Manual

How It Works:

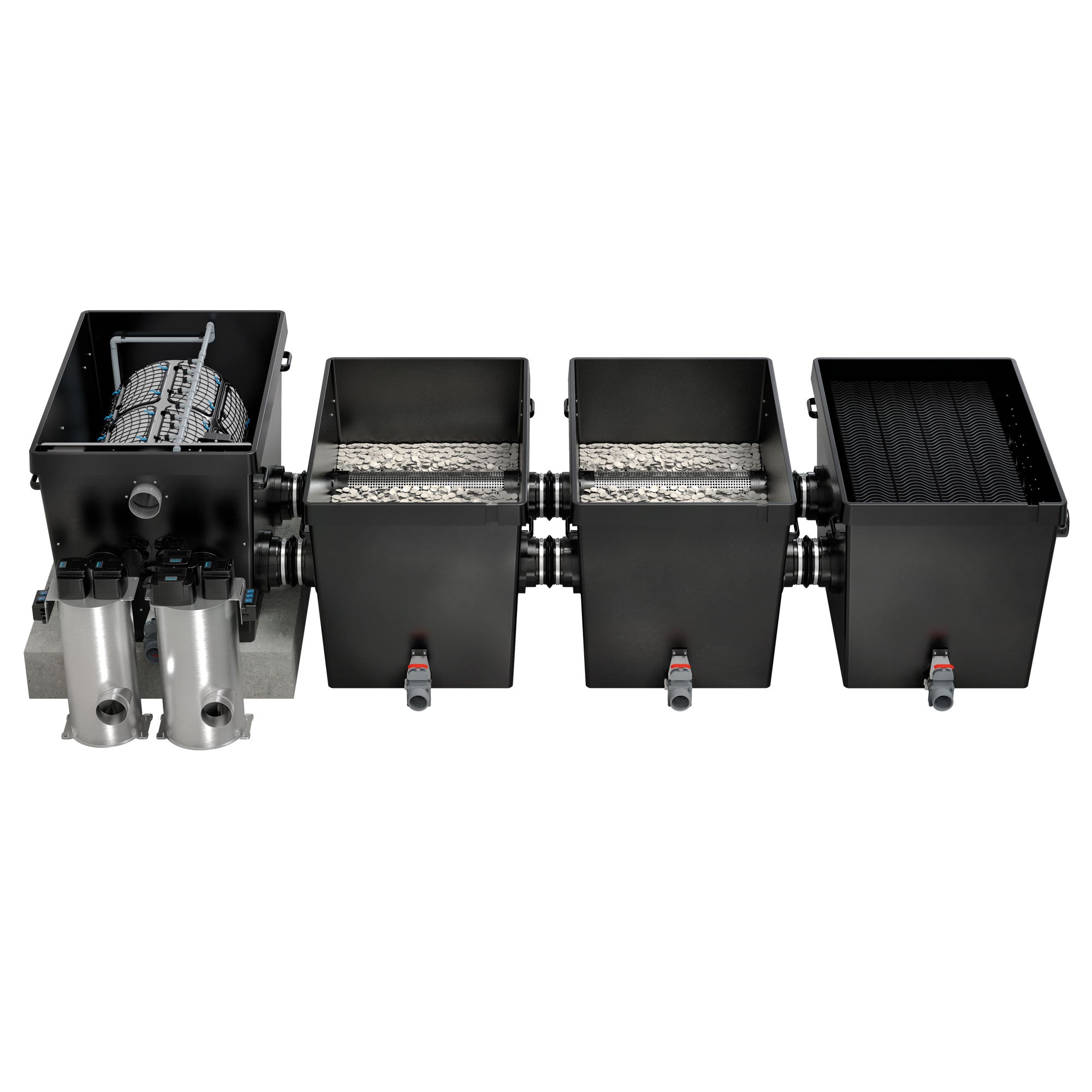

In pump-fed systems, water flows from the drum filter through any additional filtration modules and finally into the Discharge Module. The ClearWave media provides a final stage of biological filtration, removing any remaining ammonia and nitrites. The five outlets allow you to distribute clean water to multiple locations in your pond or water feature—perfect for running waterfalls, streams, and pond returns simultaneously.

Multiple Outlet Benefits:

  • Run multiple waterfalls or streams from a single filter system
  • Distribute flow evenly across your pond
  • Create complex water features with multiple discharge points
  • Flexibility to adjust flow to different features independently
  • Professional installation options for large ponds

Specifications:

  • Inlet: (2) 180mm
  • Outlet: (5) DN 110 (4")
  • Flow rate: 6,600 - 13,200 GPH
  • Bio-media: ClearWave blocks (included)
  • Dimensions: 52½" L × 34½" W × 32¼" H
  • Warranty: 3-year (2-year + 1)

What's Included:

  • ProfiClear XL Pump-Fed Discharge Module
  • ClearWave standing bed bio-media
  • Integrated sludge drain

Note: Requires 4" rubber couplings for outlet connections (sold separately). Designed for ProfiClear Premium XL pump-fed systems.

Frequently Asked Questions

Q: Do I need this module for my pump-fed ProfiClear XL system?
A: Yes, the Discharge Module is required as the final component in pump-fed ProfiClear XL systems. It serves two critical functions: providing a final stage of biological filtration with ClearWave media, and offering multiple outlet connections to return clean water to your pond. Without this module, you wouldn't have proper discharge points for your filtered water.

Q: Do I need to use all five outlets?
A: No, you can use as many or as few outlets as your installation requires. The five outlets provide flexibility—you might use one for a waterfall, one for a stream, and one for a pond return, leaving two capped for future expansion. Or you could use all five for a complex water feature with multiple discharge points. Simply cap any unused outlets with appropriate plugs.

Q: How do I maintain the Discharge Module?
A: Maintenance is straightforward. Periodically (typically every few months), open the integrated sludge drain valve to flush out accumulated debris from the bottom of the module. The ClearWave bio-media blocks don't require frequent cleaning—the constant water flow keeps them functioning effectively. This final filtration stage helps ensure crystal-clear water returns to your pond.
