Oase Proficlear Premium XL Gravity Fed Discharge Module

SKU: 95200
$3,454.99

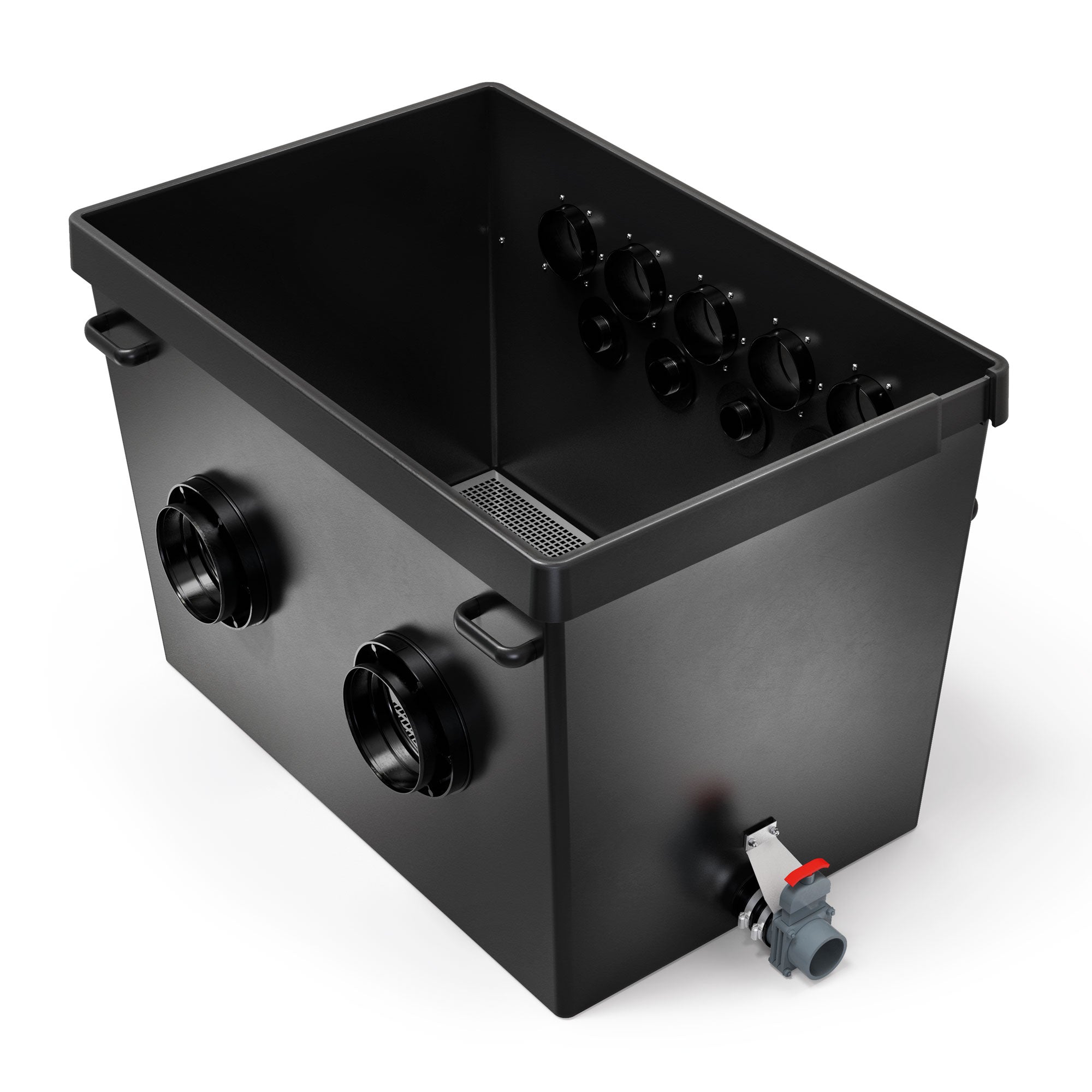

The OASE ProfiClear Premium XL Gravity-Fed Discharge Module is the final component in gravity-fed ProfiClear XL systems. This module houses up to two pumps and two UVC clarifiers, and features multiple flexible outlet connections for returning clean water to your pond via waterfalls, streams, or multiple discharge points.

Key Features:

  • Houses up to two pumps for high-capacity water return
  • Accommodates two Bitron Premium UVC clarifiers (60 & 180 models)

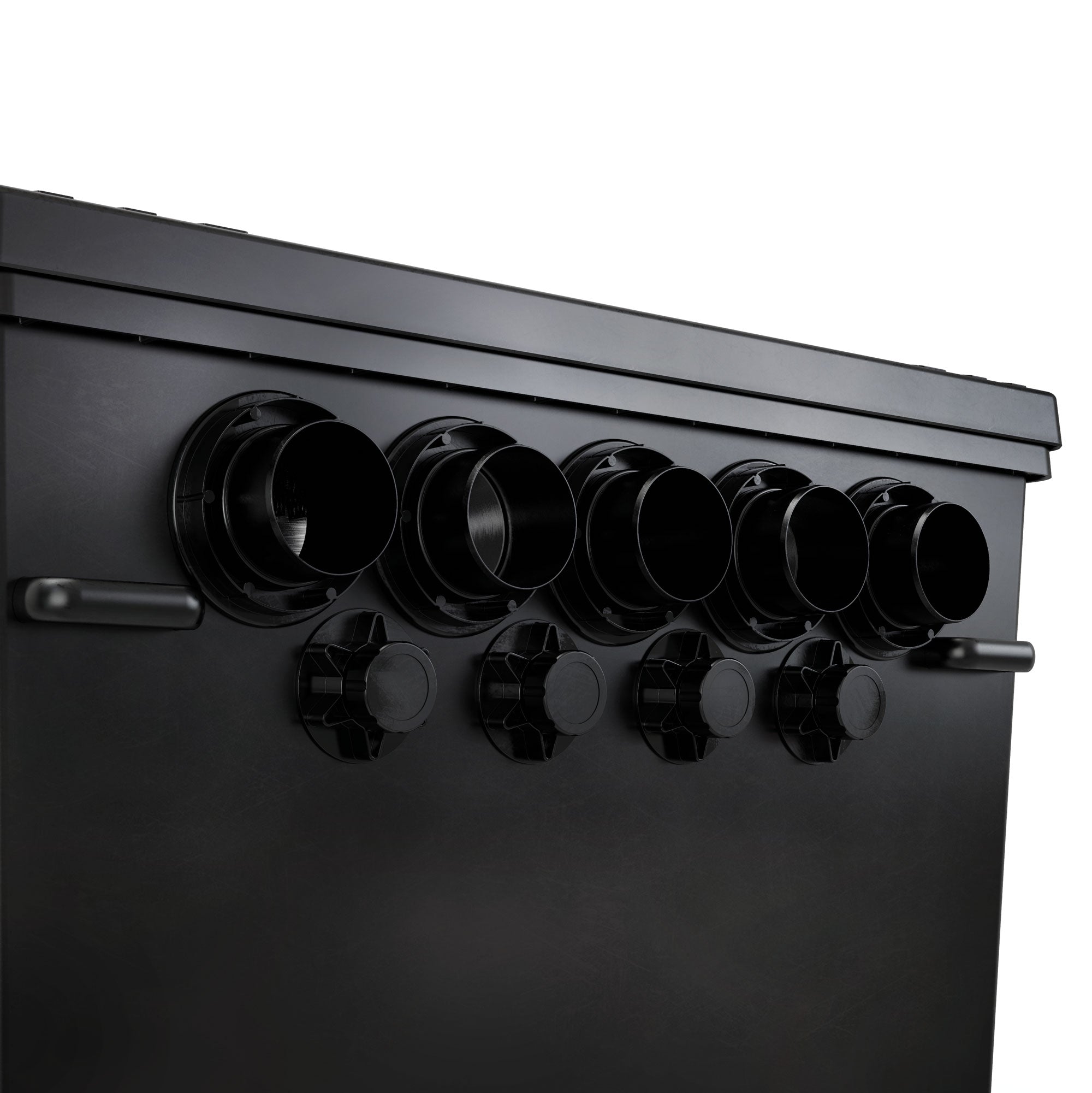

  • Five 4" (DN 110) outlets plus four 2" outlets for maximum plumbing flexibility
  • Return water to multiple locations: waterfalls, streams, fountains, or pond returns
  • Integrated sludge drain for easy flushing and maintenance

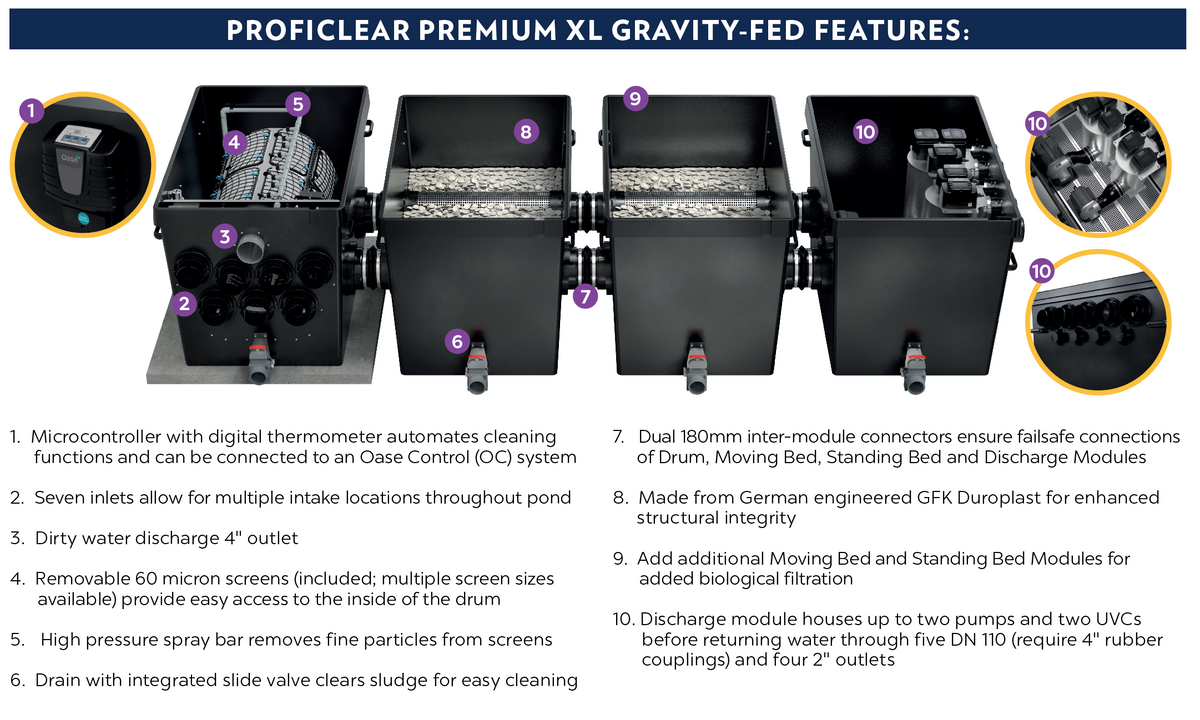

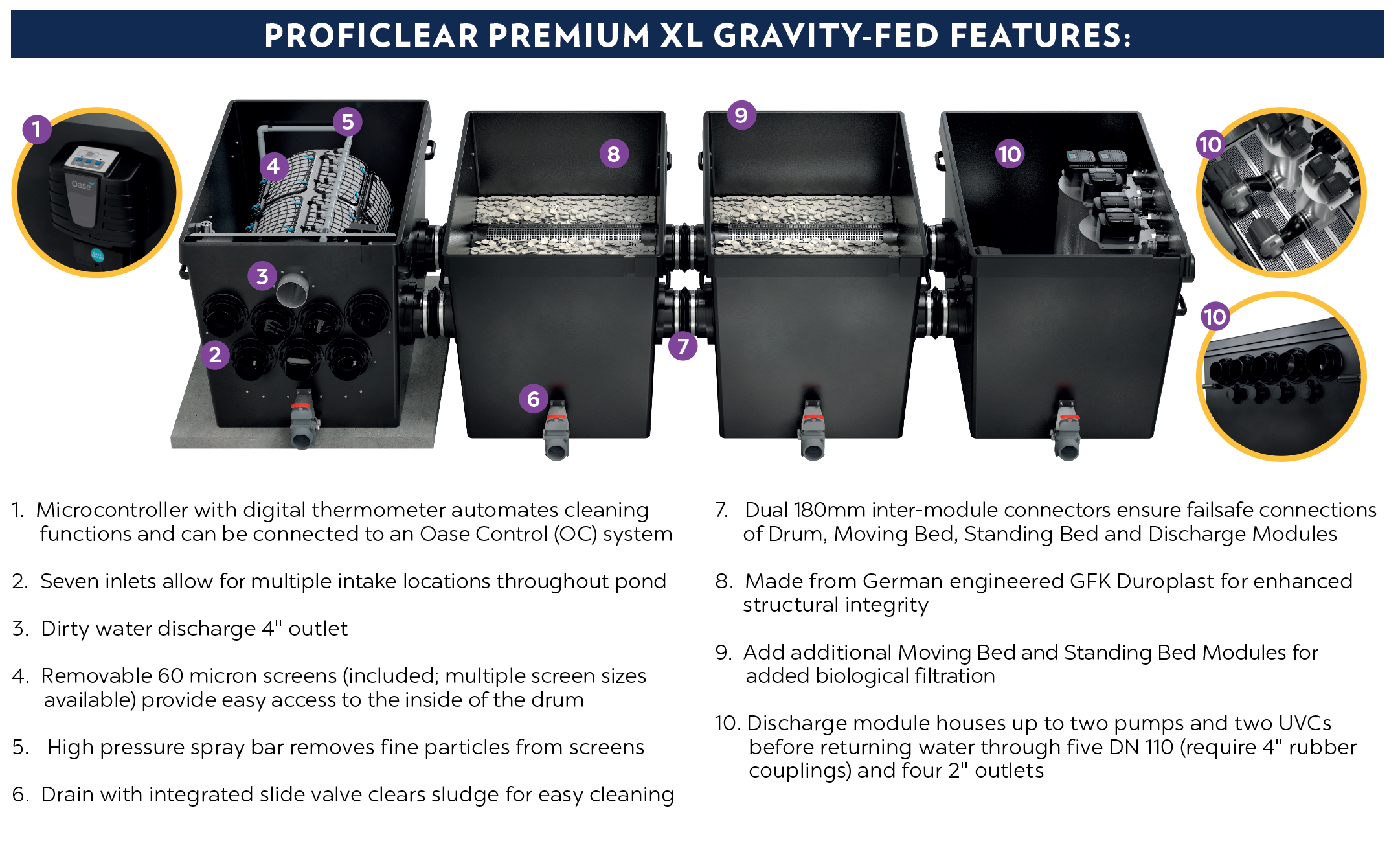

  • Final module in gravity-fed ProfiClear XL systems
  • Handles high flow rates: 6,600 - 17,400 GPH
  • 3-year warranty (2-year + 1)1

How It Works:

In gravity-fed systems, water flows naturally from your pond through bottom drains into the filter modules. The Discharge Module is the final component—it houses your return pump(s) and optional UVC clarifiers. After biological filtration, water passes through the UVC (if installed) for algae control, then the pump(s) return clean water to your pond through multiple outlets. This allows you to run waterfalls, streams, and pond returns simultaneously.

Multiple Outlet Benefits:

  • Run multiple waterfalls or streams from a single filter system
  • Distribute flow evenly across your pond
  • Create complex water features with multiple discharge points
  • Flexibility to adjust flow to different features independently
  • Professional installation options for large koi ponds

Specifications:

  • Inlet: (2) 180mm
  • Outlet: (5) DN 110 (4") and (4) 2"
  • Flow rate: 6,600 - 17,400 GPH
  • Pump capacity: Up to two pumps
  • UVC capacity: Up to two Bitron Premium UVC units (60 & 180 models)
  • Dimensions: 52½" L × 34½" W × 32¼" H
  • Warranty: 3-year (2-year + 1)
  • Manual

What's Included:

  • ProfiClear XL Gravity-Fed Discharge Module
  • Integrated sludge drain

Note: Requires 4" rubber couplings for DN 110 outlet connections (sold separately). Pumps and Bitron Premium UVC clarifiers sold separately. Designed for ProfiClear Premium XL gravity-fed systems.

Frequently Asked Questions

Q: Do I need this module for my gravity-fed ProfiClear XL system?
A: Yes, the Discharge Module is required as the final component in gravity-fed ProfiClear XL systems. It serves multiple critical functions: housing your return pump(s), providing space for UVC clarifiers, and offering multiple outlet connections to return clean water to your pond. Without this module, you wouldn't have a way to pump filtered water back to your pond or integrate UV clarification.

Q: Can I install two pumps and two UVCs in this module?
A: Yes, the Discharge Module is designed to accommodate up to two pumps and two Bitron Premium UVC clarifiers (60 & 180 models). This dual-pump capability is ideal for large ponds or when you want to run multiple water features (like a waterfall and stream) independently. The two UVC slots allow you to maximize algae control for very large ponds or heavily stocked koi ponds. You can start with one pump and one UVC and add more later as needed.

Q: Do I need to use all the outlets?
A: No, you can use as many or as few outlets as your installation requires. The five 4" outlets and four 2" outlets provide maximum flexibility—you might use one large outlet for a waterfall, another for a stream, and smaller outlets for pond returns or additional features. Simply cap any unused outlets with appropriate plugs. This flexibility allows you to create complex water features or keep options open for future expansion.
