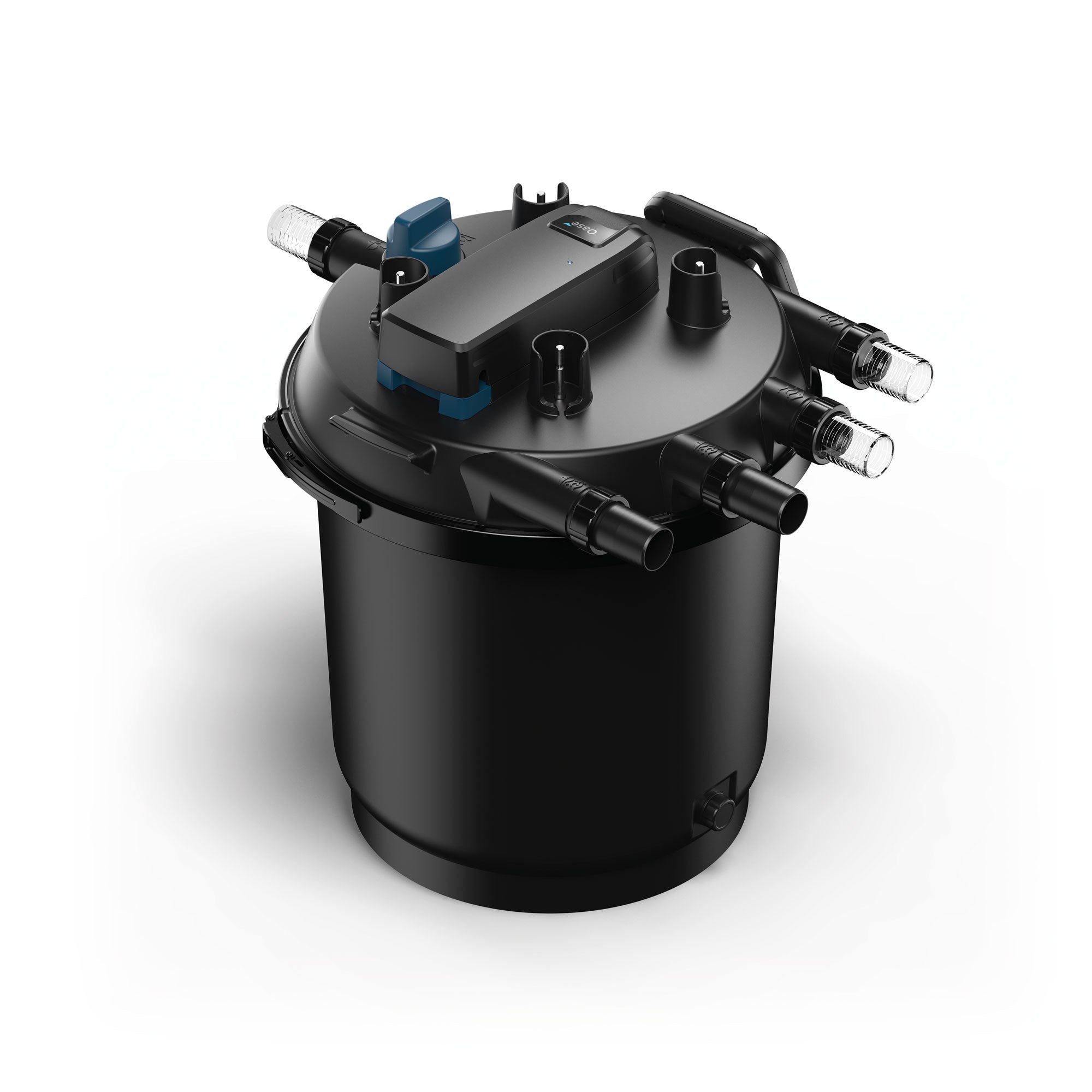

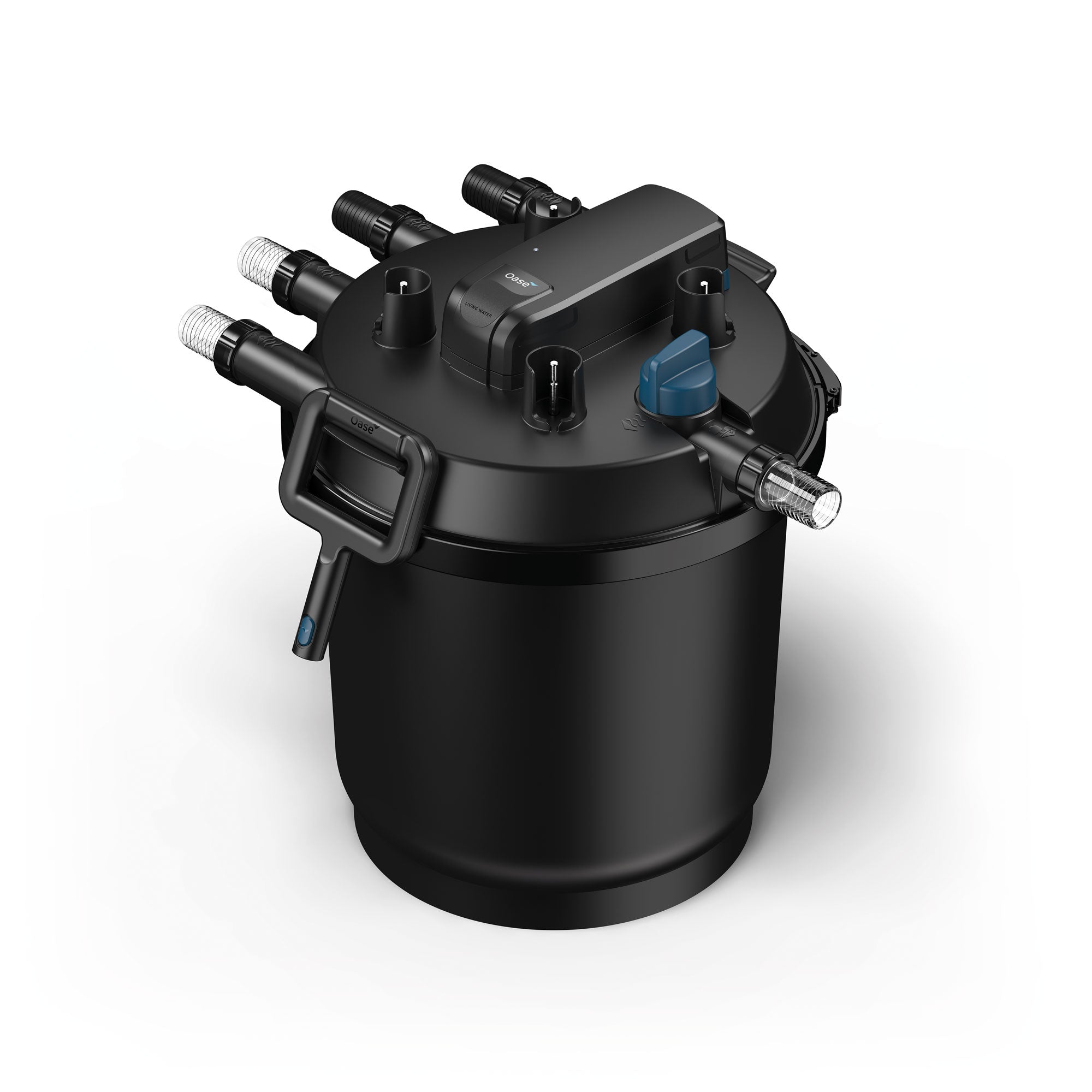

Oase High-Volume Filtoclear Pressure Filter

The Oase FiltoClear 15500 delivers powerful mechanical and biological filtration with integrated ultraviolet clarification in a compact, high-capacity system designed for fountains, formal spillways, pond-free features, water gardens, and ponds up to 15,500 gallons. Built with a durable, impact-resistant housing that can be buried up to the clamping ring for discreet installation, the FiltoClear uses four densities of replaceable filter foams (10, 20, 30, and 45 ppi) with improved support plates to maximize filtration efficiency and extend service life. A patented UVC Cleaning Rotor keeps the quartz sleeve clear for optimal UV performance, while Easy-Clean Technology with a two-way valve allows simple backflushing and waste discharge without opening the filter. Integrated monitoring lets users check UVC operation, filtration performance, and pollutant levels while replacing UV lamps without removing the cover, and bypass technology ensures constant water flow to prevent clogging. With 2" inlets and outlets for flexible plumbing, a switchable cleaning handle connected to internal rods for fast foam flushing, and optional winter drain capability, the FiltoClear combines convenience, efficiency, and reliable performance. The system includes four filter foams, two 84W UVC bulbs, metric 2" fittings, and five 2" Sch40 adapters, supports flows up to 5,200 gph, and is backed by a 2-year warranty plus 1-year extension.
The Oase FiltoClear 23500 Pressure Filter delivers powerful mechanical and biological filtration with integrated ultraviolet clarification (UVC) in a compact, high-capacity design ideal for fountains, formal spillways, pond-free features, water gardens, and ponds up to 23,500 gallons. Built with a durable, impact-resistant housing that can be buried up to the clamping ring for discreet installation, the FiltoClear uses four densities of replaceable filter foams (10, 20, 30, and 45 ppi) with reinforced support plates to maximize filtration efficiency and extend service life. A patented UVC Cleaning Rotor keeps the quartz sleeve clear for optimal UV light transmission, while Easy-Clean Technology with a two-way valve allows convenient backflushing and waste discharge without opening the filter or removing the cover. Integrated monitoring lets users check UVC operation, filter performance, and pollutant levels while replacing both UV lamps externally, and bypass technology ensures consistent water flow to prevent clogging. With 2" inlets and outlets for flexible plumbing, a switchable cleaning handle connected to internal rods for simple foam flushing, and optional winter drain capability, the FiltoClear 23500 combines performance and convenience for demanding water features. The system includes four filter foams, two 120W UVC bulbs, metric 2" fittings, and five 2" Sch40 adapters, supports flows up to 6,000 gph, and is backed by a 2-year warranty plus 1-year extension.

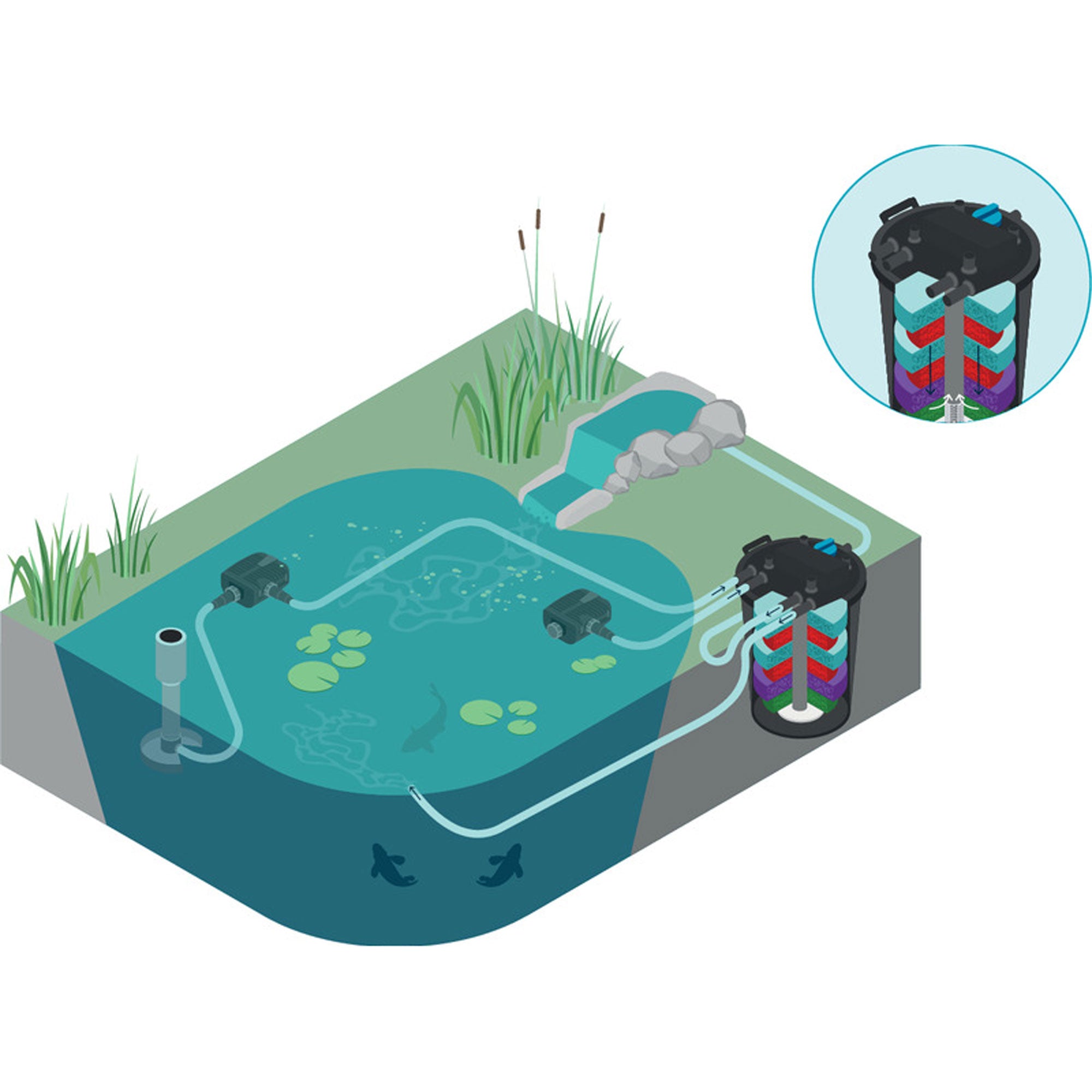

In-line pressure filters offer biological and mechanical filtration that can be located remotely

Oase FiltoClear provides mechanical and biological filtration with ultraviolet clarification (UVC)

Compact, high-capacity filter is perfect for Fountain, Formal Spillway, Pond-free and Water Garden applications

The high quality, impact resistant body can be buried up to the clamping ring

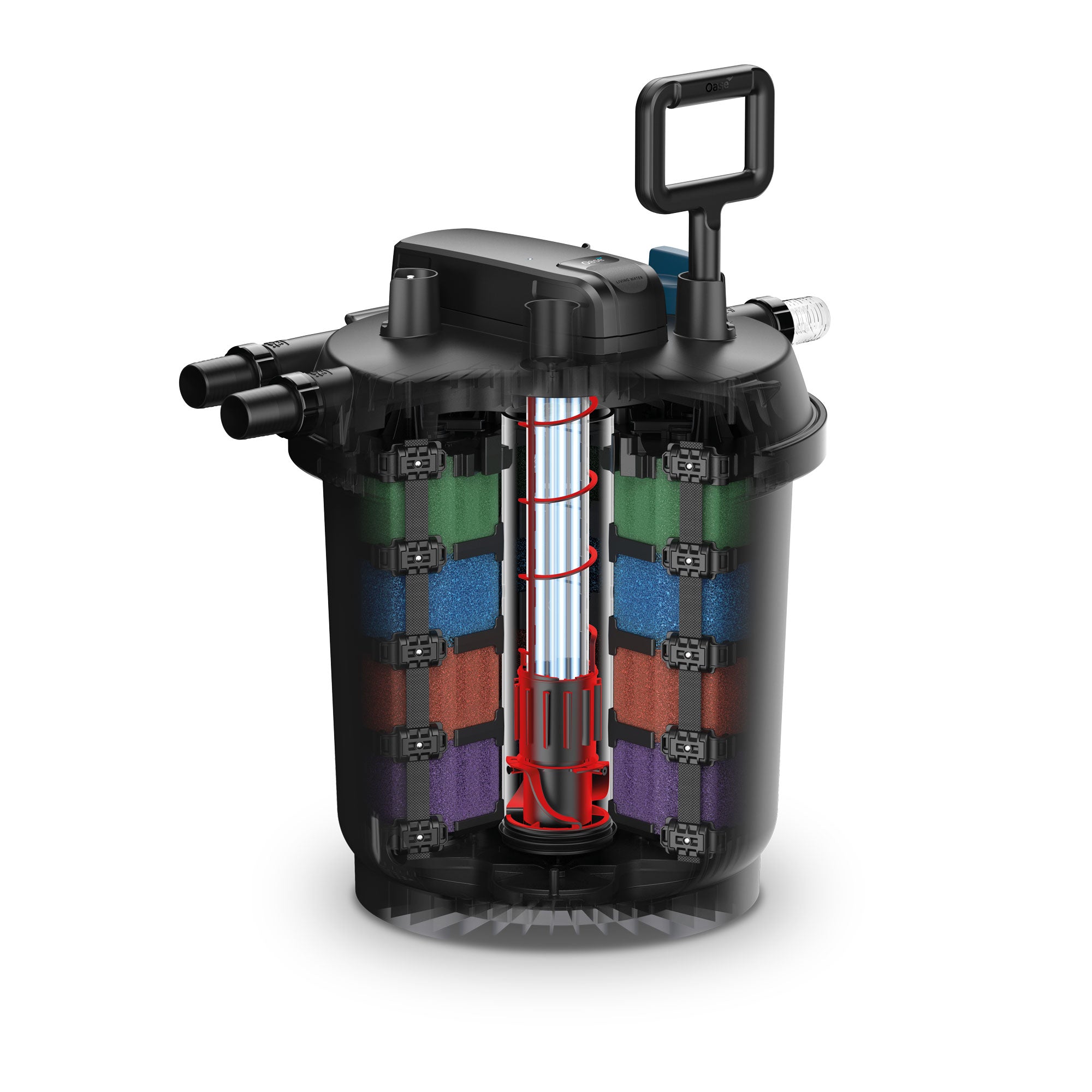

4 densities of replaceable filter foams (10, 20, 30 & 45 pores per inch), new plates and extra supports improve cleaning function and ensure long service life

Patented UVC Cleaning Rotor keeps quartz glass clean for better transmission of UV light

2-way Valve backflushes filter and directs waste with Easy-Clean Technology, no need to open filter or remove the cover

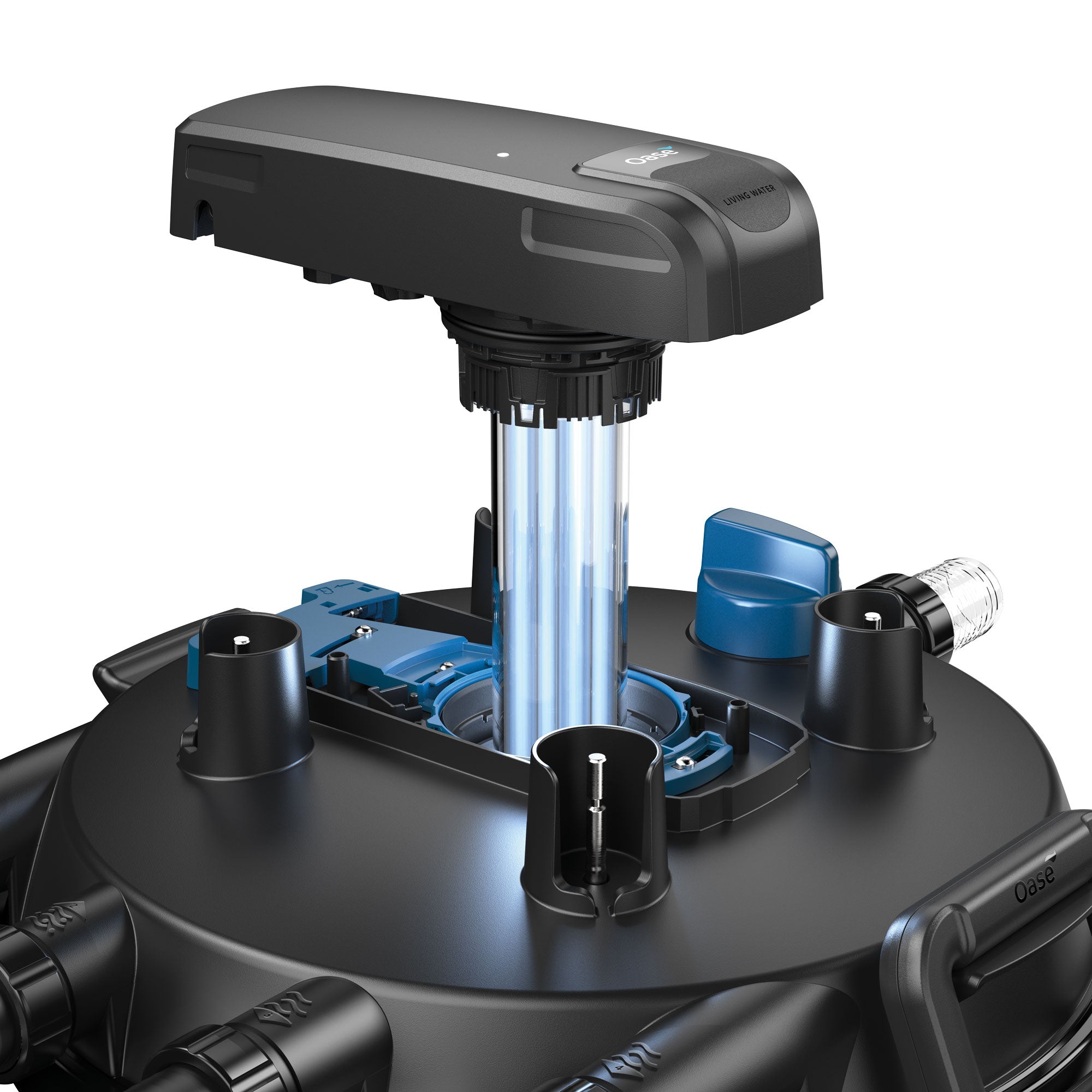

Monitor UVC, filter performance and pollutant level and change both UV lamps all without opening filter

Bypass technology ensures constant water flow and prevents the filter from becoming clogged

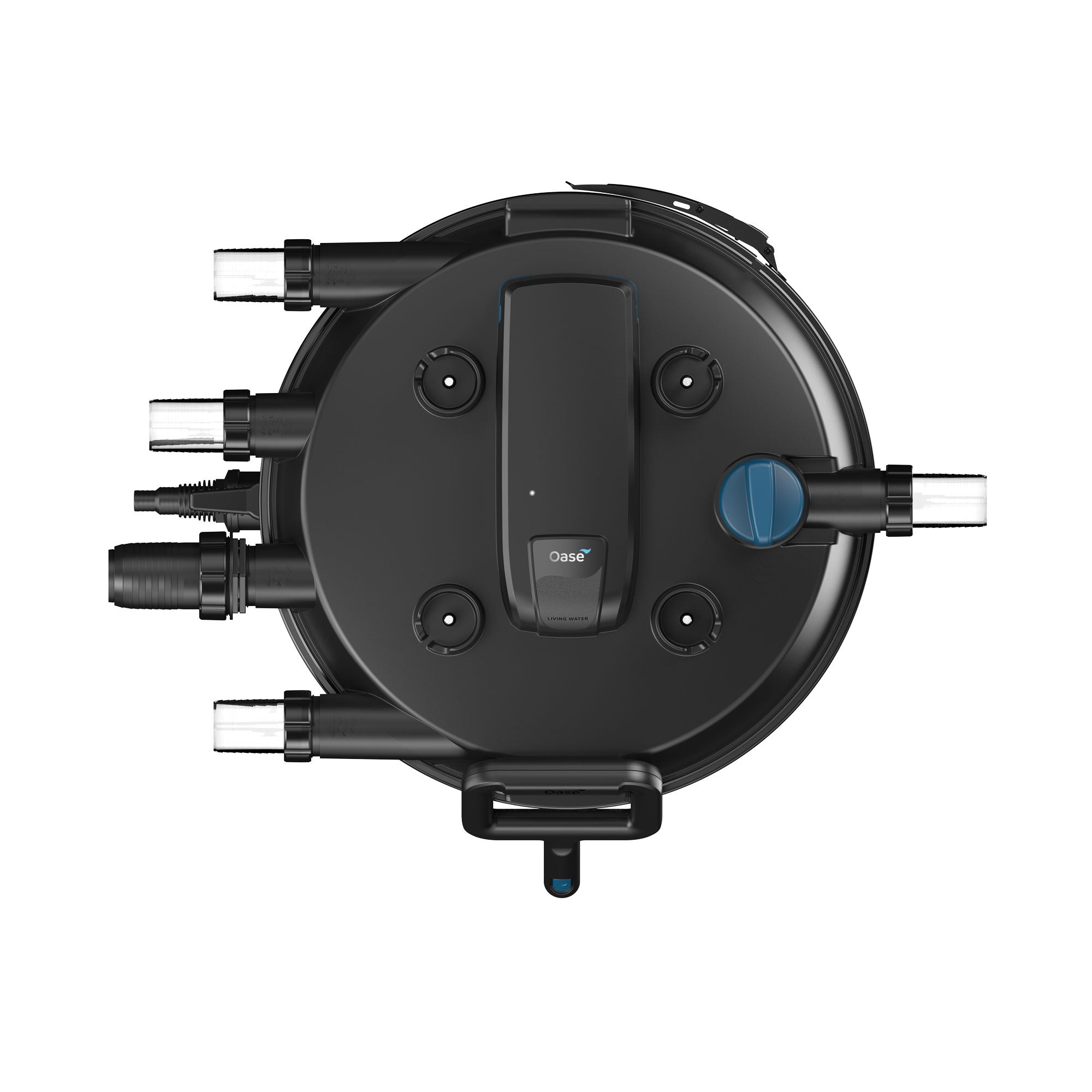

2" inlets and outlets allow for multiple draw and return points for water throughout any water feature

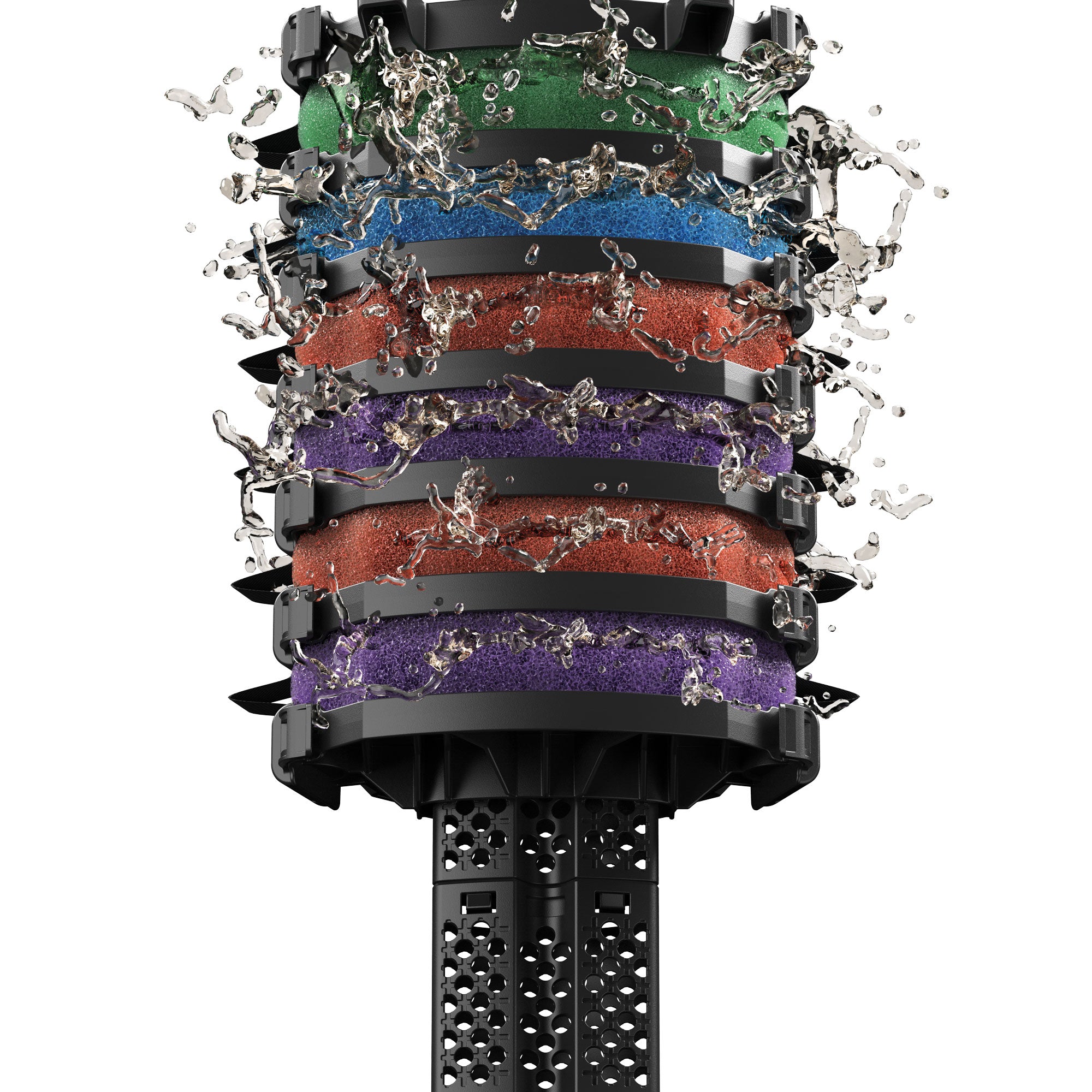

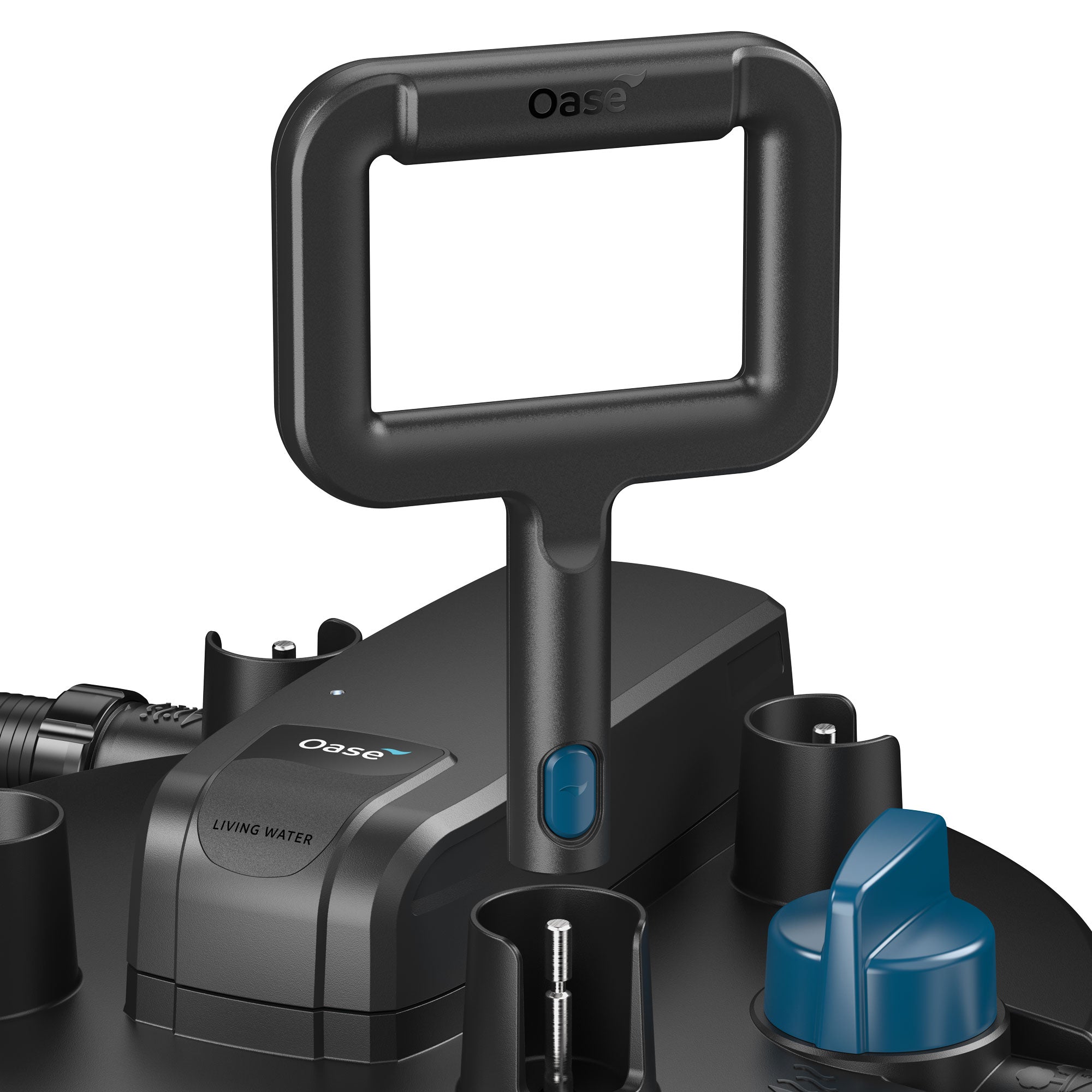

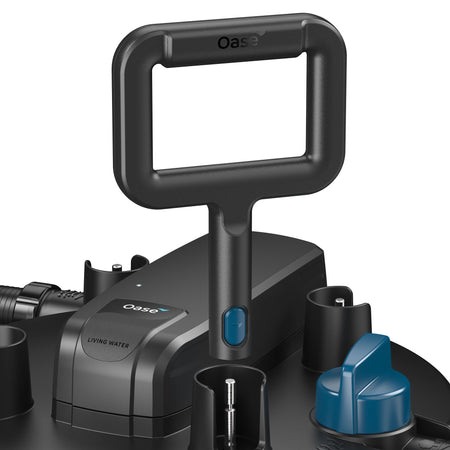

Switchable cleaning handle connects to four cleaning rods to easily flush foams during cleaning

Easily drain FiltoClears for winterization without ever opening the filter (optional, sold separately)

FIltoclear 15500 Specs.
UVC: 84W
Max Flow: 5,200 gph
Max Pressure: 8.7 psi / 20' of head
Max Pump Input Pressure: 13.7 psi / 31' of head
Cord Length: 16'
Hose Size: 2"
Pond Volume: up to 15,500 gal
Includes: 4 types of filter foams (10, 20, 30 & 45 ppi), (2) UVC bulbs, metric 2" fittings, (5) 2" Sch40 adapters
Warranty: 2-year + 1
Dimensions: 30¾"L x 22¾"W x 27¾"H

Filtoclear 23500 Specs
UVC: 120W
Max Flow: 6,000 gph
Max Pressure: 8.7 psi / 20' of head
Max Pump Input Pressure: 13.7 psi / 31' of head
Cord Length: 16'
Hose Size: 2"
Pond Volume: up to 23,500 gal
Includes: 4 types of filter foams (10, 20, 30 & 45 ppi), (2) UVC bulbs, metric 2" fittings, (5) 2" Sch40 adapters
Warranty: 2-year + 1
Dimensions: 30¾"L x 22¾"W x 35⅞"H
