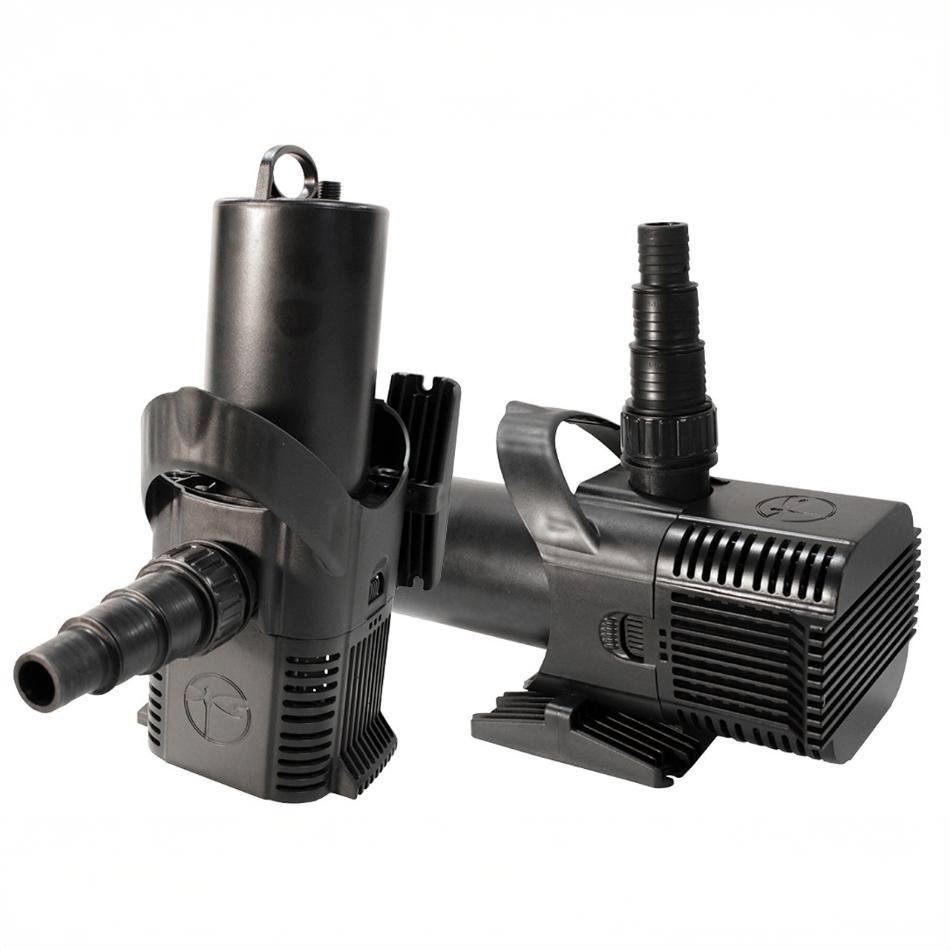

Blue Thumb IllumiFlow Pump

SKU: PB1694
$259.99
Size

Hybrid Performance with Magnetic Drive Efficiency

The Blue Thumb IllumiFlow Pump delivers the best of both worlds—the powerful flow rates of direct drive pumps combined with the energy efficiency of magnetic drive technology. This innovative hybrid design provides exceptional performance for ponds, waterfalls, and water features while keeping operating costs low and reliability high.

Available in five models ranging from 2100 GPH to 7800 GPH, the IllumiFlow series offers versatile solutions for small backyard ponds to large water features. Enhanced with quality components and advanced manufacturing technologies, these pumps are backed by an extended 24-month limited warranty for long-term peace of mind.

Key Features

  • Hybrid Drive Technology: Direct drive flow rates with magnetic drive energy efficiency
  • Aerates & Oxygenates: Promotes healthy water conditions for fish and plants
  • Water-Cooled Design: Oil-free operation for safe, clean performance
  • Thermal Overload Protection: Automatic shutdown prevents motor damage
  • Low-Profile Design: Horizontal or vertical operation for flexible installation
  • Removable Fish-Guard Screen: Protects fish while preventing debris from entering pump
  • 1" to 1.5" Fittings Included: Ready to connect to standard plumbing
  • 24-Month Limited Warranty: Extended coverage reflects superior quality

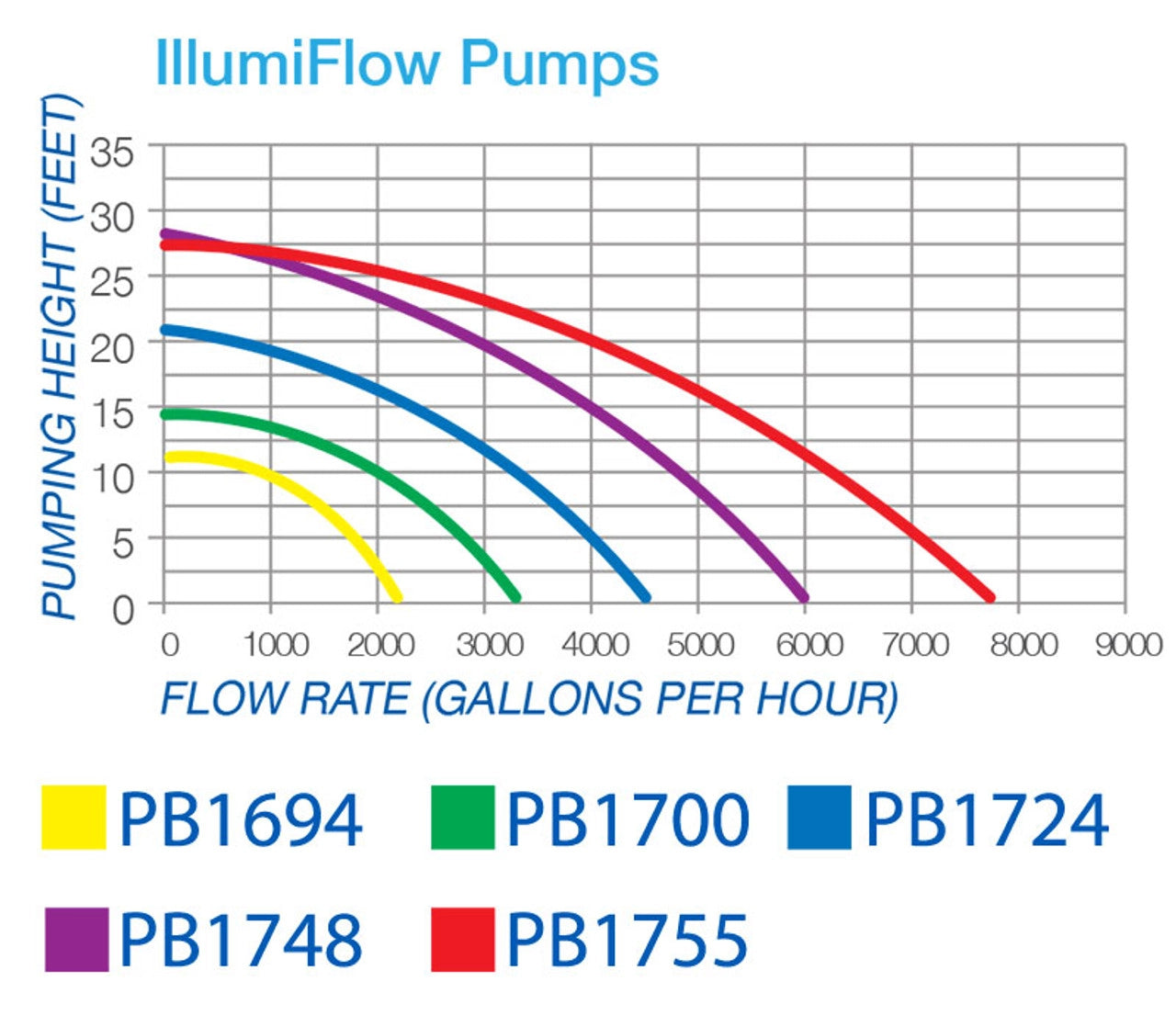

Available Models

  • 2100 GPH (PB1694): Ideal for small to medium ponds and water features
  • 3200 GPH (PB1700): Perfect for medium ponds and moderate waterfalls
  • 4500 GPH (PB1724): Excellent for larger ponds and substantial water features
  • 6000 GPH (PB1748): Powerful performance for large ponds and dramatic waterfalls
  • 7800 GPH (PB1755): Maximum flow for estate ponds and commercial installations

Why Choose IllumiFlow?

Traditional direct drive pumps offer high flow rates but consume more energy, while magnetic drive pumps are efficient but often lack power. The IllumiFlow hybrid design bridges this gap, delivering robust flow rates without the high operating costs. The water-cooled, oil-free design ensures clean operation, while thermal overload protection safeguards the motor from damage. The removable fish-guard screen protects aquatic life while making maintenance straightforward.

Frequently Asked Questions

Q: What does "hybrid drive" mean?
A: Hybrid drive combines direct drive and magnetic drive technologies to deliver the high flow rates of direct drive pumps with the energy efficiency and reliability of magnetic drive pumps.

Q: Which size pump do I need for my pond?
A: Pump size depends on your pond volume, waterfall height, and desired flow rate. As a general guideline, circulate your pond's total volume at least once per hour. For waterfalls, calculate based on desired spillway width and head height.

Q: Can this pump be used for both ponds and waterfalls?
A: Yes. IllumiFlow pumps are versatile and work well for pond circulation, waterfall features, streams, and filtration systems.

Q: What does "water-cooled, no oil" mean?
A: The pump uses water for cooling instead of oil, eliminating the risk of oil leaks contaminating your pond. This design is safer for fish and aquatic plants.

Q: Can the pump be installed horizontally or vertically?
A: Yes. The low-profile design allows for both horizontal and vertical installation, providing flexibility based on your pond configuration and space constraints.

Q: What is the fish-guard screen?
A: The removable fish-guard screen covers the pump intake to prevent fish from being drawn into the pump while also filtering out larger debris. It's removable for easy cleaning.

Q: What size fittings are included?
A: Each pump includes fittings for 1" to 1.5" plumbing connections, compatible with standard pond tubing and plumbing components.

Q: What does thermal overload protection do?
A: If the pump motor overheats due to debris blockage or other issues, the thermal overload protection automatically shuts down the pump to prevent damage. Once cooled, the pump can be restarted.

Q: How does this pump aerate and oxygenate water?
A: As water circulates through the pump and returns to the pond, it creates surface agitation and water movement that increases oxygen exchange, promoting healthier water conditions for fish and plants.

Q: What maintenance does this pump require?
A: Regularly clean the fish-guard screen to remove debris, check that water flow remains strong, and inspect fittings for secure connections. The water-cooled design requires no oil changes or lubrication.
