Blue Thumb Elite X-Large 40" Cascading Falls Kit
Complete Pondless Waterfall System
The Blue Thumb Elite X-Large 40" Cascading Falls Kit delivers everything you need to create a stunning pondless waterfall up to 17 feet long with a 5-7 foot wide stream. This complete, ready-to-install system lets you enjoy all the restful and relaxing benefits of cascading water without the safety or maintenance concerns of a traditional pond.
Perfect for families with young children, small yards, or anyone seeking low-maintenance water features, this comprehensive kit includes the 40" Elite Cascade Spillway Box, Elite Pump Canyon, professional-grade liner and underliner, powerful 7800 GPH IllumiFlow pump, basin matrix system, and all necessary plumbing and installation components. From short and narrow falls to wide and dramatic cascades, the design opportunities are endless for both residential and commercial settings.
Key Features
- Complete Kit: Everything needed for installation (except rocks and gravel)
- 40" Spillway: Creates dramatic, wide waterfall displays
- Low Maintenance: Pondless design eliminates pond upkeep
- Safe Design: No open water concerns for families with young children
- Powerful Pump: 7800 GPH IllumiFlow hybrid drive pump
- Professional Components: Elite-grade spillway and pump vault
- Versatile Applications: Residential and commercial installations
System Specifications
- Maximum Size: 17' L × 5'-7' W stream
- Spillway Width: 40"
- Pump: Blue Thumb IllumiFlow 7800 GPH
- Liner: PondGard rubber liner (15' × 15' and 15' × 20')
- Flex Pipe: 3" × 25' black PVC
- Basin Matrix: 4 large + 4 small units

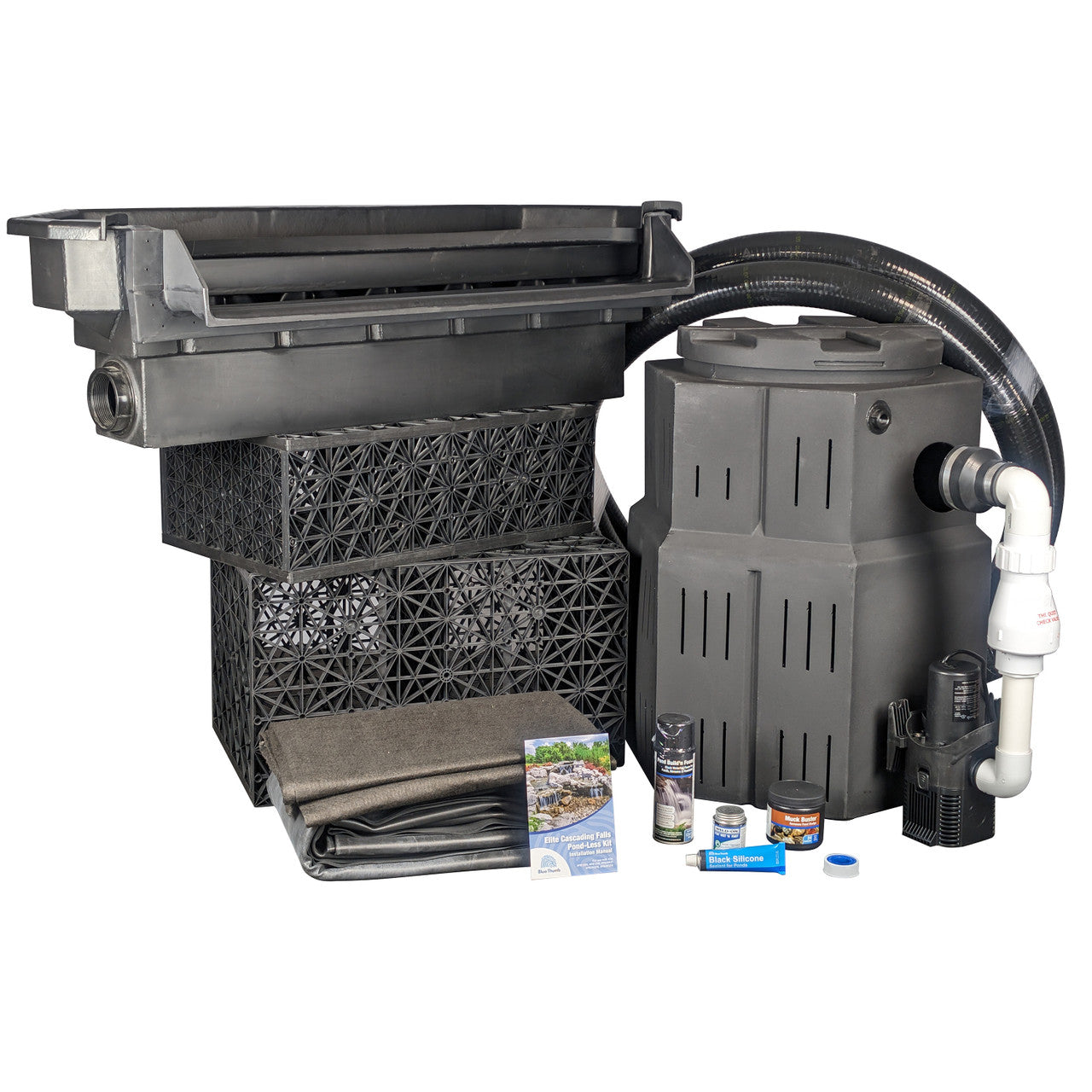

Complete Kit Includes
- 40" Elite Cascade Spillway Box
- Elite Pump Canyon™ (vault)
- PondGard rubber liner - 15' × 15' and 15' × 20'
- Protective underliner
- Blue Thumb IllumiFlow™ 7800 GPH pump
- Pump discharge assembly with check valve
- Black PVC flex pipe - 3" × 25'
- Basin matrix - 4 large and 4 small units
- 8oz pond cleaner and MuckBuster
- Installation kit: instructions, PVC glue, and black foam
Note: Rocks and gravel not included.
Why Choose Pondless Waterfalls?

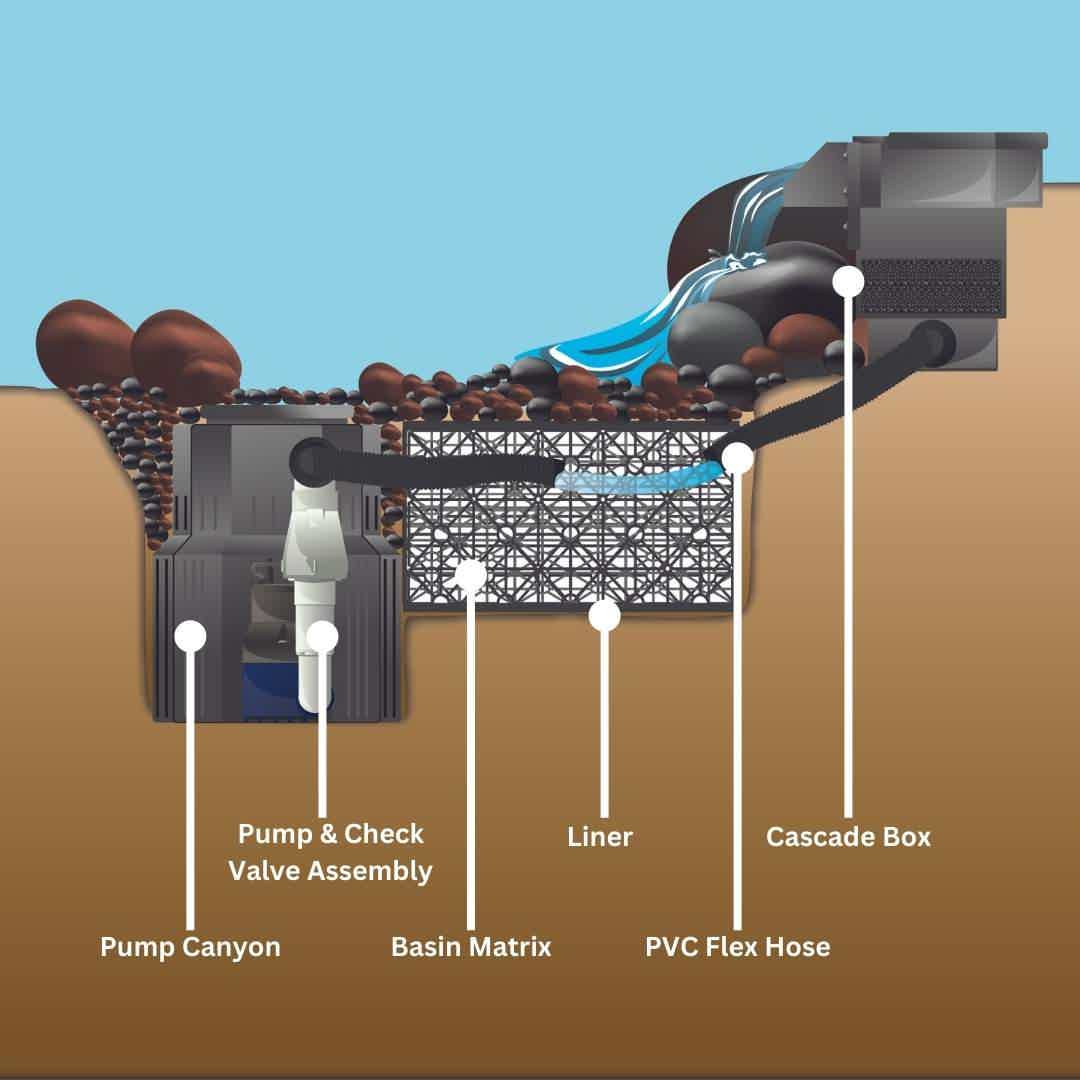

Pondless waterfalls offer the beauty, sound, and tranquility of cascading water without the maintenance, safety concerns, or space requirements of traditional ponds. The water disappears into a hidden underground basin filled with matrix boxes and covered with decorative stone, creating a natural-looking waterfall feature. This design is ideal for families with young children (no open water hazards), small yards (more compact footprint), and anyone seeking low-maintenance water features (no algae control, fish care, or extensive cleaning).
Frequently Asked Questions
Q: What does "pondless" mean?
A: A pondless waterfall has no visible pond. Water cascades down the waterfall and disappears into a hidden underground basin where it's recirculated by the pump. The basin is covered with decorative stone, creating a natural appearance.
Q: What size waterfall can I build with this kit?
A: This kit supports waterfalls up to 17 feet long with a 5-7 foot wide stream. The 40" spillway creates a dramatic cascade at the top of your waterfall.
Q: What is included in the complete kit?
A: The kit includes the 40" spillway box, pump vault, liners, 7800 GPH pump, check valve assembly, flex pipe, basin matrix, water treatment, and installation materials. You provide rocks and gravel for the waterfall and basin covering.
Q: What is the Elite Pump Canyon?
A: The Elite Pump Canyon is a professional-grade vault that houses the pump in the underground basin, providing easy access for maintenance while protecting the pump and keeping it submerged.
Q: What is the IllumiFlow pump?
A: The IllumiFlow 7800 GPH is a hybrid drive pump that combines the high flow rates of direct drive pumps with the energy efficiency of magnetic drive pumps, providing powerful performance with lower operating costs.
Q: What is the basin matrix?
A: The basin matrix consists of stackable boxes that create the underground water reservoir. They provide structural support while maximizing water storage capacity in the hidden basin.
Q: Can I install this myself?
A: Yes. The kit includes complete installation instructions, and many DIYers successfully install pondless waterfalls. The project requires excavation, liner placement, and basic plumbing skills. Professional installation is also available.
Q: How much rock and gravel do I need?
A: Rock and gravel requirements vary based on your design. You'll need decorative stone to cover the basin matrix and build the waterfall cascade. Consult the installation guide for estimates based on your specific design.
Q: Is this safe for families with young children?
A: Yes. Pondless waterfalls eliminate the open water safety concerns of traditional ponds, making them ideal for families with young children or pets.
