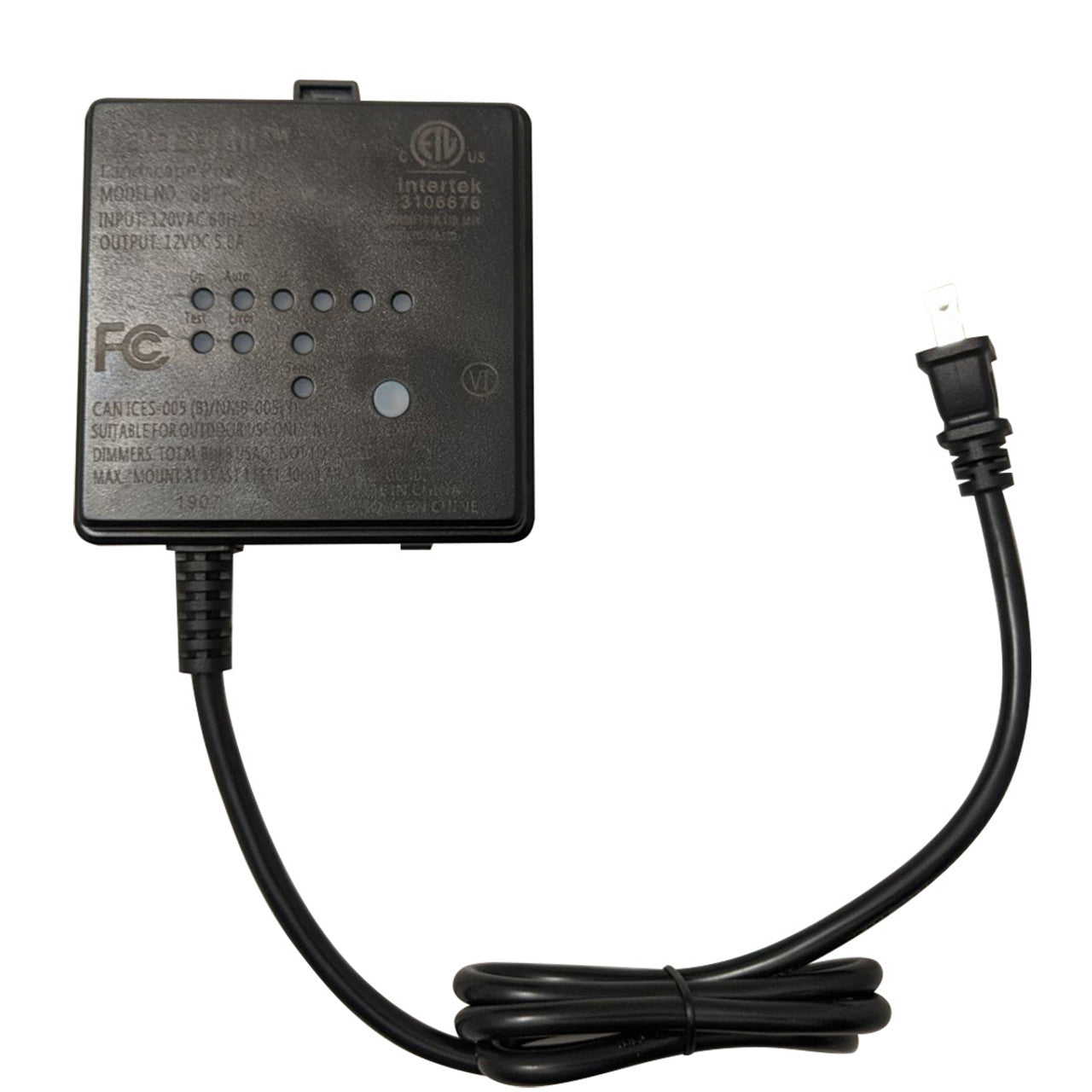

Blue Thumb 60 Watt Transformer

SKU: PB1588
$119.99

60 Watt Low Voltage Transformer with Photocell Timer

Illuminate your pond, fountain, or water feature with the Blue Thumb 60 Watt Transformer. This professional-grade low voltage transformer combines automatic dusk-to-dawn operation with customizable timer settings, providing convenient, energy-efficient lighting control for your outdoor water features and landscape lighting.

The built-in photocell automatically turns your lights on at dusk, while the programmable timer turns them off after 2, 4, 6, or 8 hours. Compatible with both halogen and LED lights, this versatile transformer delivers reliable 12-volt DC power for safe, effective outdoor lighting.

Product Specifications

  • Power Output: 60 watts
  • Input: 120 Volts AC
  • Output: 12 Volts DC, 5 Amps
  • Weight: 5 lbs
  • SKU: PB1588

Key Features

  • Automatic Dusk Operation: Built-in photocell turns lights on at dusk
  • Programmable Timer: Choose 2, 4, 6, or 8-hour automatic shut-off
  • Dual Compatibility: Works with both halogen and LED lights
  • Low Voltage Safety: 12-volt DC output is safe for outdoor water features
  • Energy Efficient: Automatic timer prevents unnecessary operation
  • Set and Forget: Once programmed, operates automatically every day

How It Works

The integrated photocell sensor detects decreasing light at dusk and automatically turns your lights on. The timer then counts down your selected duration (2, 4, 6, or 8 hours) and turns lights off automatically. No daily manual switching required, and it automatically adjusts to seasonal sunset changes.

Timer Settings

  • 2 Hours: Early evening enjoyment
  • 4 Hours: Dinner and evening entertainment
  • 6 Hours: Extended evening lighting
  • 8 Hours: Maximum duration for all-evening illumination

Power Capacity

The 60-watt capacity supports various lighting configurations:

  • LED Lights: Power up to 60 watts (typically 12-20 LED lights)
  • Halogen Lights: Power up to 60 watts (typically 3-6 halogen lights)
  • Mixed Installation: Combine LED and halogen as long as total doesn't exceed 60 watts

Important: Always calculate total wattage to ensure it doesn't exceed 60 watts.

Ideal Applications

  • Fountain and pond lighting
  • Waterfall accent lighting
  • Landscape and path lights
  • Deck and patio lighting
  • Architectural uplighting

Installation Tips

  • Install in protected location near 120V AC outlet
  • Use outdoor-rated low-voltage cable
  • Ensure photocell has clear view of ambient light
  • Calculate total wattage before connecting lights
  • Set desired shut-off time (2, 4, 6, or 8 hours)

Frequently Asked Questions

Q: How does the automatic dusk operation work?
A: The built-in photocell detects decreasing light at dusk and automatically turns lights on. No manual switching needed.

Q: What are the timer options?
A: Choose 2, 4, 6, or 8-hour automatic shut-off. The timer starts when the photocell turns lights on at dusk.

Q: Can I use LED lights with this transformer?
A: Yes! Works with both halogen and LED lights. LED lights are more energy-efficient, allowing you to power more lights with the same 60-watt capacity.

Q: How many lights can I connect?
A: Depends on wattage per light. Total must not exceed 60 watts. For example: twelve 5-watt LED lights or three 20-watt halogen lights.

Q: Is 12-volt lighting safe around water?
A: Yes, 12-volt DC lighting is considered safe for pond and fountain applications, significantly reducing electrical shock hazards.

Q: Do I need to reset the timer every day?
A: No, once set, it operates automatically every day. Photocell turns lights on at dusk, timer turns them off after your selected duration.

Q: Will the photocell adjust for seasonal sunset changes?
A: Yes! The photocell automatically detects ambient light levels, adjusting to seasonal changes without manual intervention.

Q: Where should I install the transformer?
A: Install in a protected location near a 120V outlet. While weather-resistant, protecting from direct rain extends its life.

Q: Can I use this for landscape path lights?
A: Absolutely! Works perfectly for any 12-volt landscape lighting including path lights, uplights, and accent lighting.

Q: What happens if I exceed 60 watts?
A: Exceeding 60 watts can damage the transformer and create safety hazards. Always calculate total wattage and stay within the limit.
