Atlantic Tidal Wave A-Series Pump
Heavy-Duty Direct Drive Pumps for High Head Applications
The Atlantic Tidal Wave A-Series Pump is engineered for the most demanding high head, high volume applications where conventional pumps fall short. Built to tackle the longest runs and tallest waterfalls, the A-Series delivers exceptional performance in installations requiring substantial vertical lift and extended horizontal distances. Whether you're powering a multi-tier estate waterfall, commercial fountain, or extensive stream system, the A-Series provides the power and reliability professionals demand.
Constructed with heavy-duty cast iron and stainless steel housing, the A-Series is built for years of dependable service in challenging outdoor environments. The continuous-duty direct drive motor design combines raw power with simplified maintenance, while advanced sealing technology and thermal protection ensure long-term reliability even under extreme operating conditions.
Professional-Grade Construction
The A-Series features heavy-duty cast iron and stainless steel housing that withstands the rigors of continuous outdoor operation. This robust construction resists corrosion, handles thermal cycling, and maintains structural integrity under the mechanical stresses of high-pressure pumping. The durable materials ensure the pump performs reliably season after season, even in harsh climates and demanding applications.
Continuous Duty Direct Drive Motor
The continuous-duty direct drive motor delivers the power necessary for high head applications while reducing maintenance requirements to simply keeping the intake screen clean. Unlike magnetic drive pumps that sacrifice power for efficiency, the A-Series direct drive design provides the raw pumping capacity needed to overcome significant elevation changes and long pipe runs without compromising flow rates.
This motor design is specifically engineered for applications where head height and distance are primary concerns, making it the ideal choice for tall waterfalls, elevated water features, and installations where the pump must be located far from the discharge point.
Advanced Sealing and Protection
Double silicone carbide mechanical seals provide superior protection against water intrusion while reducing friction and wear. This dual-seal design significantly extends motor life compared to single-seal configurations, particularly important in continuous-duty applications where seal failure would result in costly downtime and repairs.
Dual drive bearings further reduce friction and wear on rotating components, ensuring smooth operation and prolonging motor life. Thermal overload protection automatically shuts down the pump in low water conditions, preventing catastrophic damage from overheating. This safety feature protects your investment by detecting abnormal operating conditions before they cause permanent motor damage.

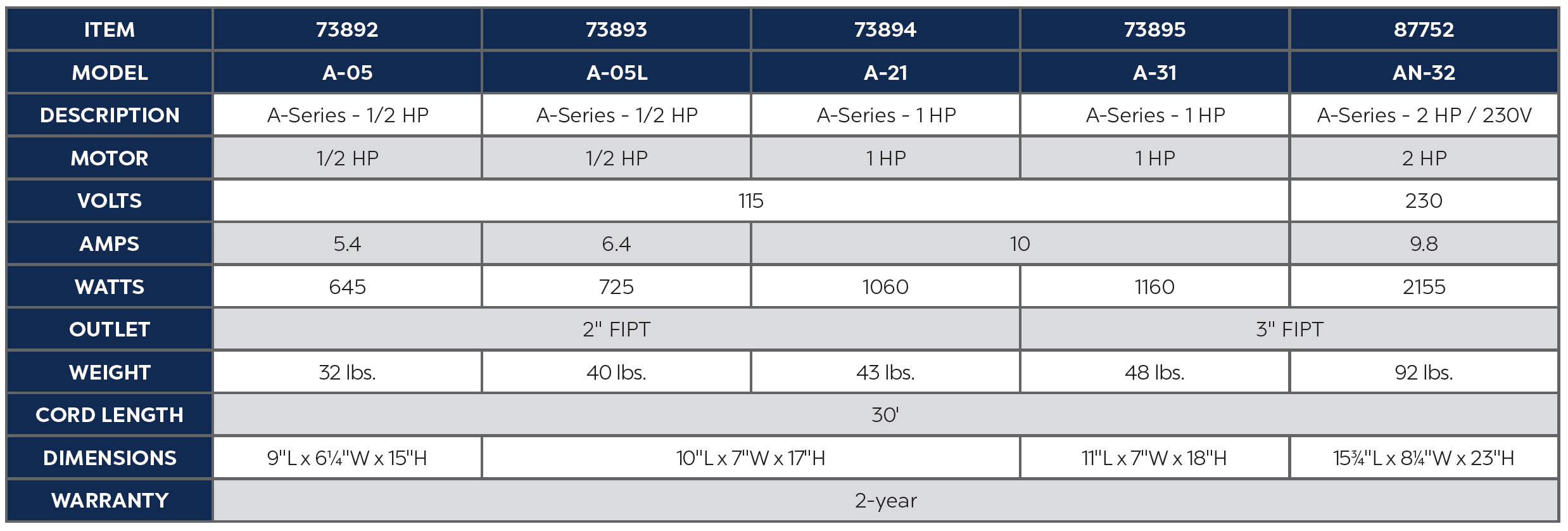

Available Models

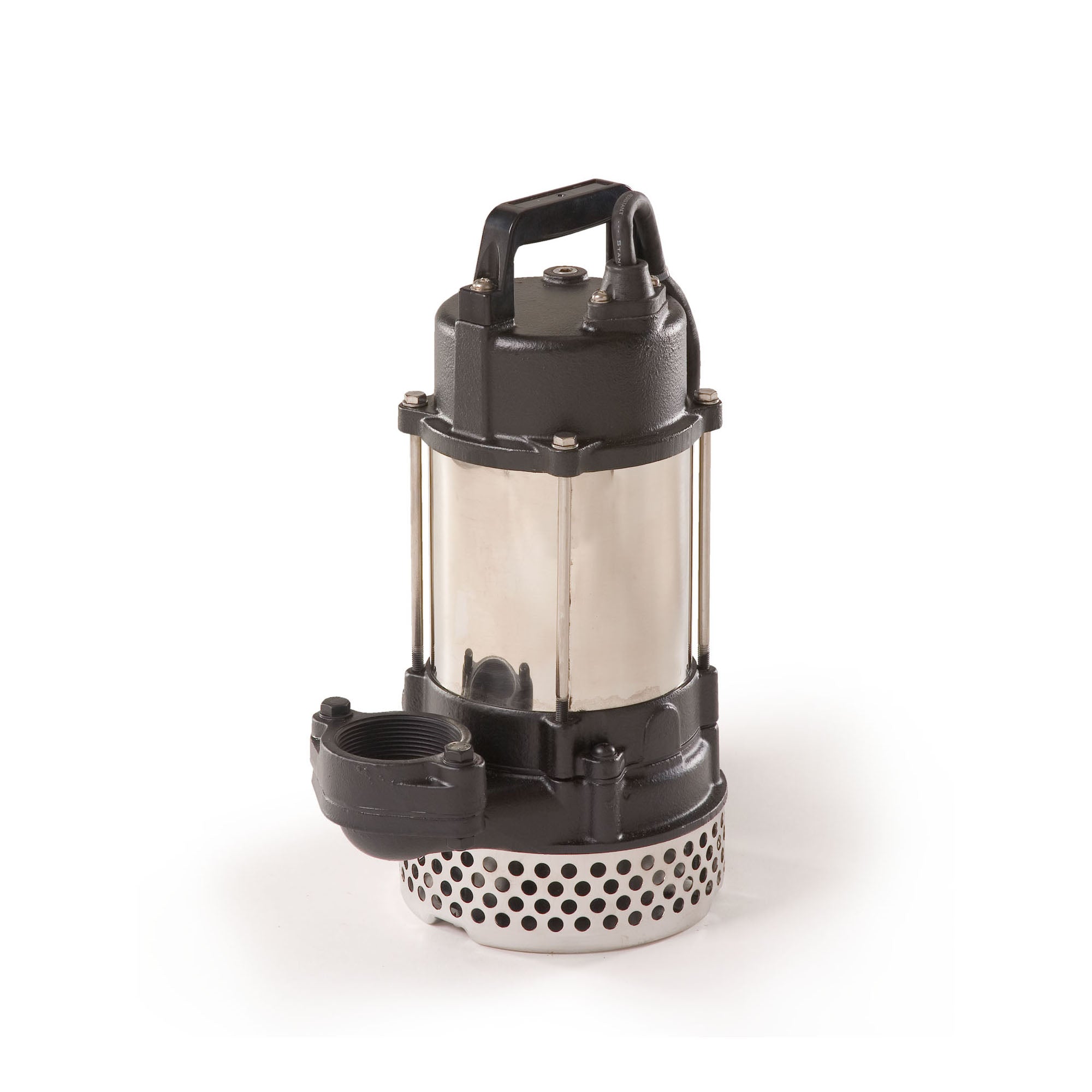

A-05 Model - SKU: 73892
Entry-level A-Series model for moderate high-head applications. Ideal for residential waterfalls and water features requiring reliable performance with moderate vertical lift. Weight: 32 lbs.
A-05L Model - SKU: 73893
Enhanced capacity variant of the A-05 for applications requiring greater flow at similar head heights. Suitable for larger residential waterfalls and commercial fountain installations. Weight: 40 lbs.
A-21 Model - SKU: 73894
Mid-range capacity for substantial waterfalls and extensive stream systems. Delivers increased flow and head height capability for estate-scale water features and commercial installations. Weight: 43 lbs.

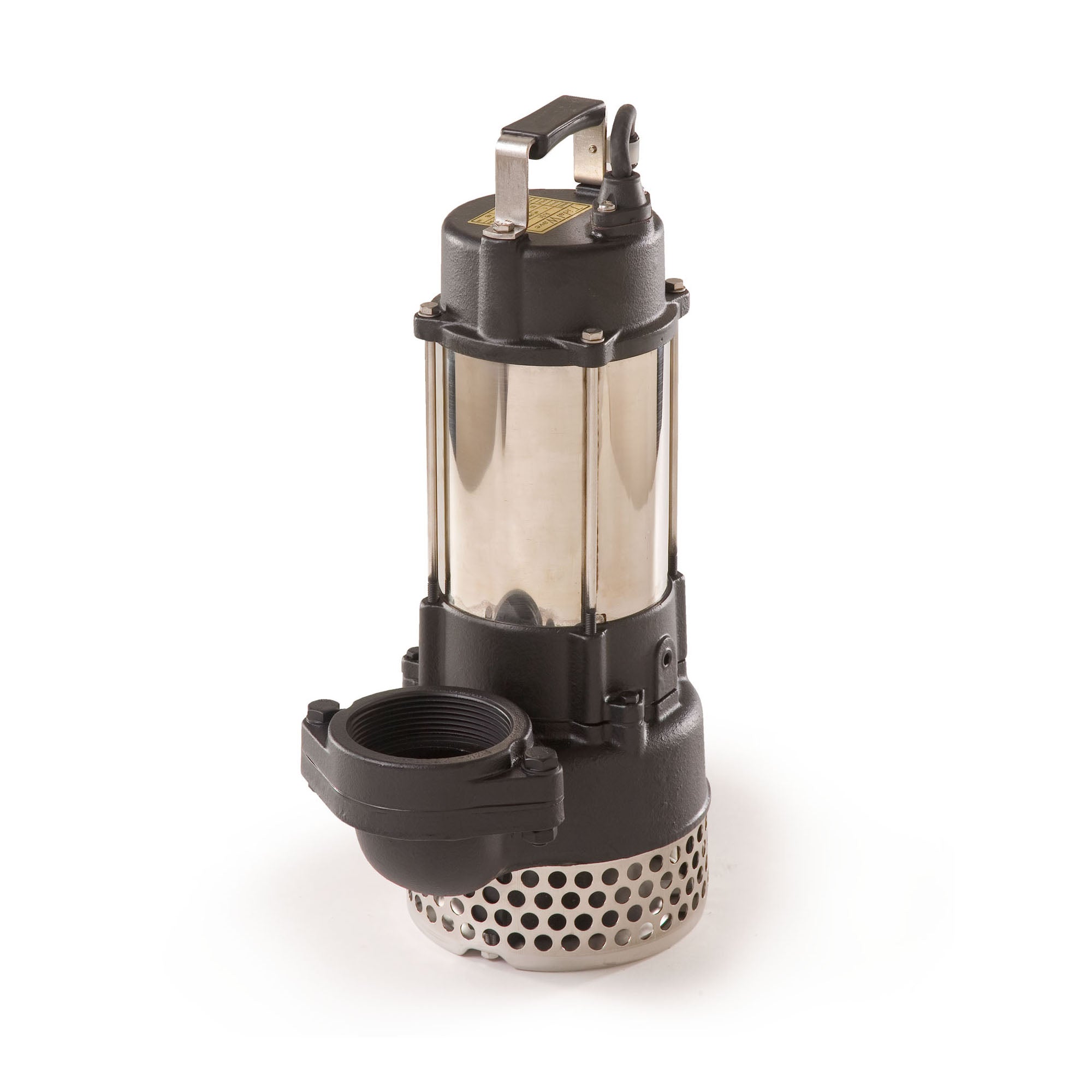

A-31 Model - SKU: 73895
High-capacity solution for demanding applications requiring significant vertical lift and high flow rates. Engineered for large estate waterfalls, commercial water features, and installations with extended pipe runs. Weight: 48 lbs.

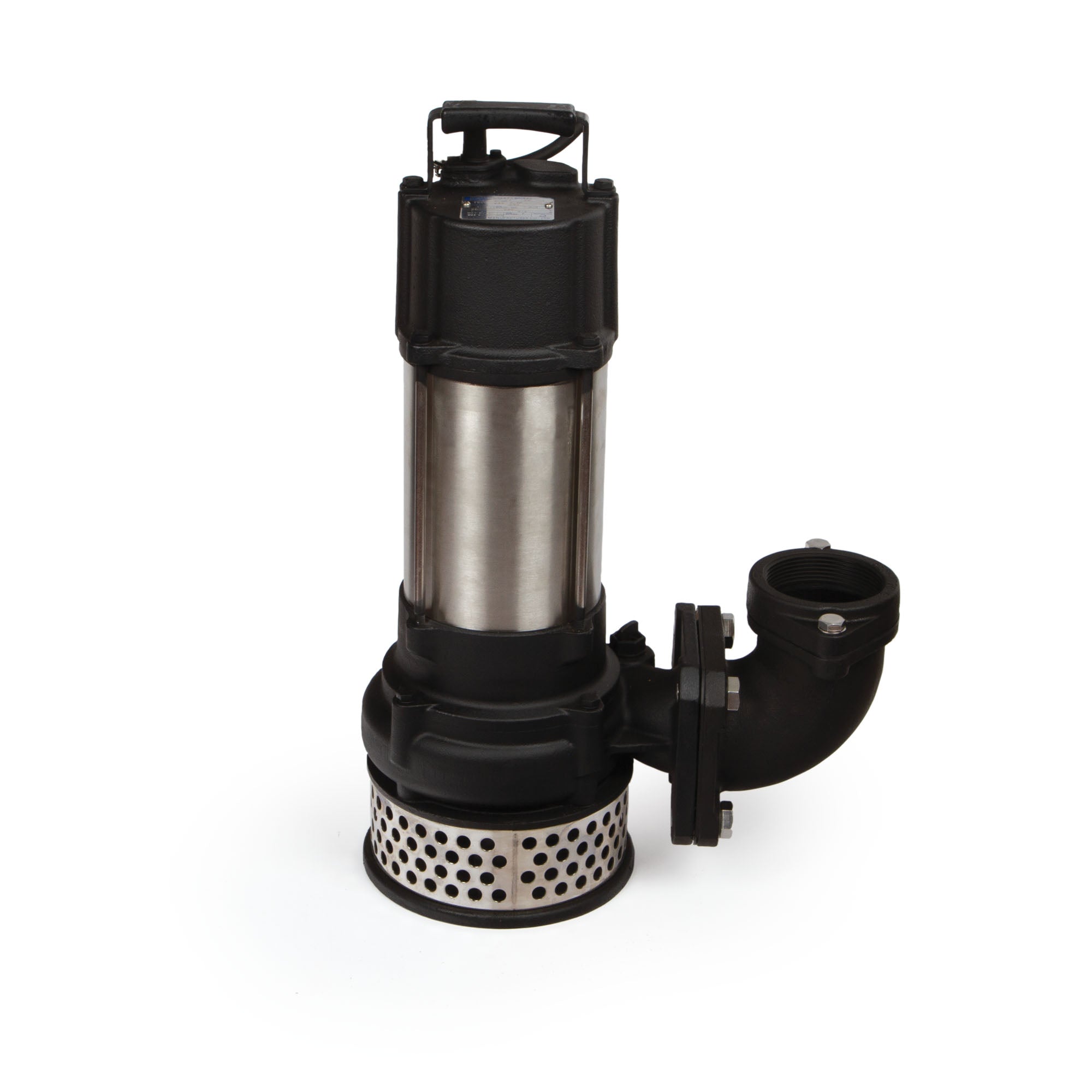

AN-32 Model - SKU: 87752
Maximum capacity A-Series model for the most demanding professional installations. Delivers exceptional flow rates at extreme head heights, ideal for multi-tier commercial waterfalls, large estate water features, and applications requiring the ultimate in pumping power. Weight: 95 lbs.
Key Features
- Built for highest head, high volume applications
- Tackles the longest runs and tallest waterfalls
- Heavy-duty cast iron and stainless steel housing
- Continuous-duty direct drive motor for maximum power
- Simplified maintenance - keep intake screen clean
- Double silicone carbide mechanical seals reduce friction and wear
- Dual drive bearings prolong motor life
- Thermal overload protection prevents damage from overheating
- Automatic shutdown in low water conditions
- Five models from moderate to maximum capacity
- Professional-grade construction for years of service
- Ideal for commercial and estate-scale installations
Frequently Asked Questions
Q: How do I determine which A-Series model I need?

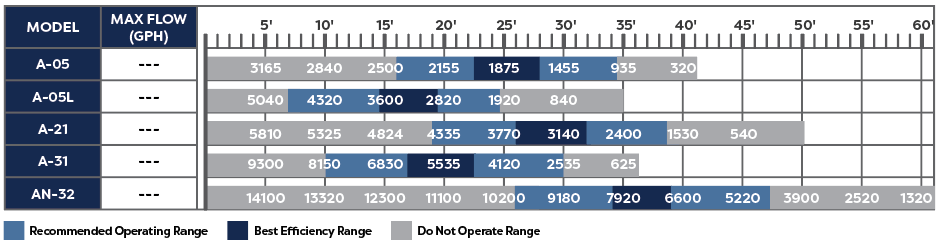

A: Model selection depends on your required flow rate and total head height (vertical lift plus friction losses from pipe length and fittings). Consult the performance curves for each model to match your specific application requirements. A water feature professional can help calculate total dynamic head for your installation.
Q: What's the difference between direct drive and magnetic drive pumps?
A: Direct drive pumps like the A-Series use a traditional motor shaft connection, providing greater power and head height capability. Magnetic drive pumps are more energy-efficient but sacrifice power. Choose direct drive for high head applications; choose magnetic drive for energy efficiency in lower head installations.
Q: Can I use the A-Series for pond circulation?
A: While the A-Series can circulate pond water, it's specifically engineered for high head applications like waterfalls and fountains. For simple pond circulation without significant elevation change, consider energy-efficient magnetic drive pumps that provide better operating cost efficiency.
Q: How often do I need to clean the intake screen?
A: Cleaning frequency depends on debris load in your water feature. Inspect the intake screen regularly (weekly during peak season) and clean when debris accumulation is visible. The A-Series is designed for easy maintenance with accessible intake screening.
Q: What does thermal overload protection do?
A: Thermal overload protection monitors motor temperature and automatically shuts down the pump if it detects overheating, typically caused by running dry or restricted flow. This prevents permanent motor damage and allows the pump to restart once it cools and normal conditions are restored.
Q: Is the A-Series submersible or external?
A: The A-Series is a submersible pump designed to operate fully submerged in water. It should not be run dry or used as an external pump.
Q: Can I run the pump continuously?
A: Yes. The A-Series features a continuous-duty motor specifically designed for 24/7 operation in water features that run constantly throughout the season.
Q: What maintenance is required beyond cleaning the intake screen?
A: The A-Series is designed for minimal maintenance. Beyond keeping the intake screen clean, periodically inspect the discharge connection for leaks and ensure the pump remains fully submerged. The sealed motor design eliminates the need for lubrication or internal maintenance.
