Blue Thumb Pump Canyon Extension

In stock
SKU: PB2354
Regular price $189.99
Size

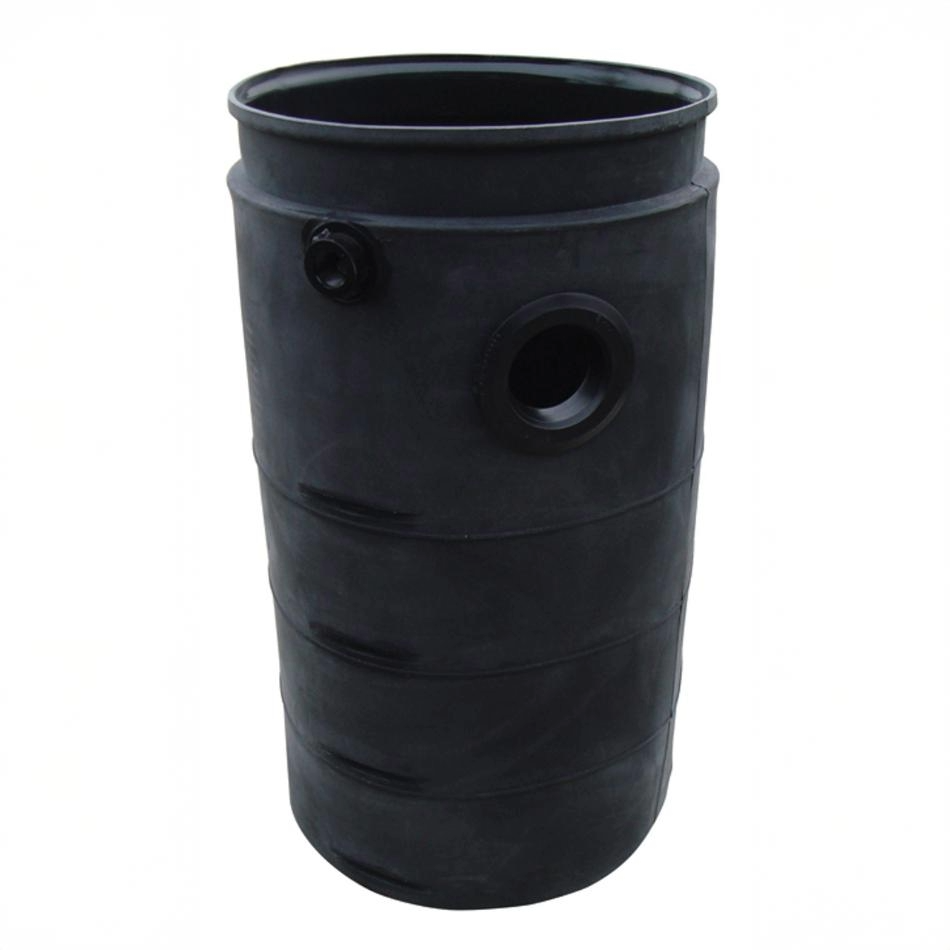

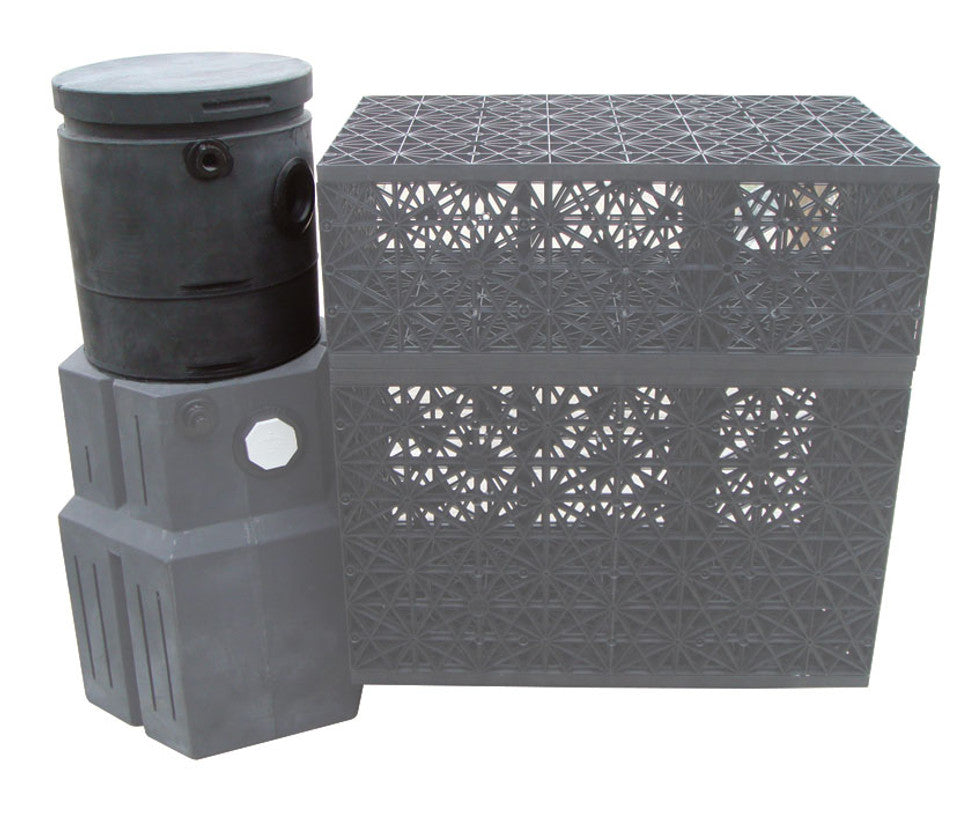

Use the Pump Canyon Extension to create additional water capacity by creating a larger, deeper reservoir with a smaller footprint.
For use with Small Pump Canyon only
Overall height: 22"

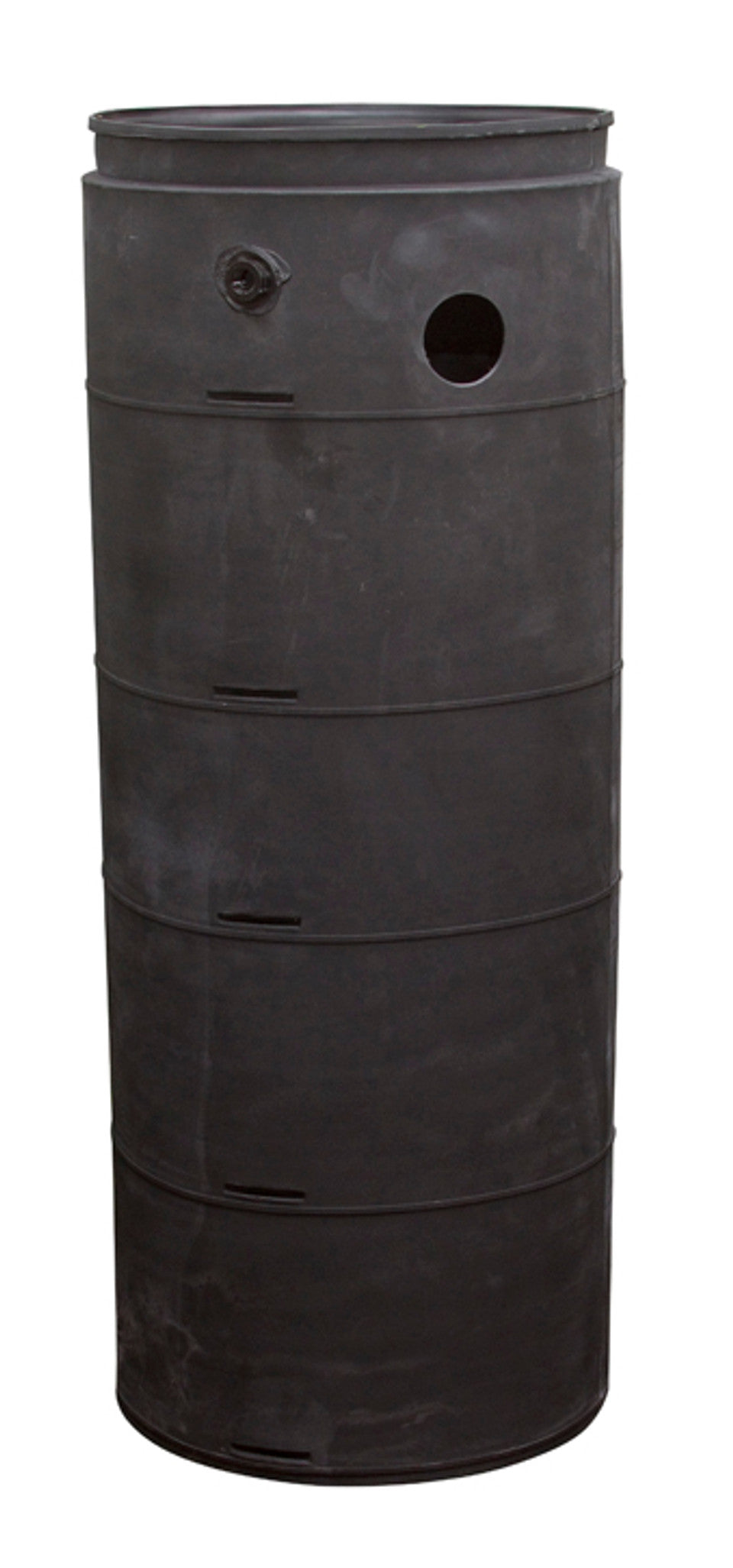

Use the Pump Canyon Extension to create additional water capacity by creating a larger, deeper reservoir with a smaller footprint.

For Elite Large Pump Canyon only
Overall Height: 48"
Cut size at 9.5", 18.75", 27.5", 38", as measured from top lip



About our Pond-Less Waterfalls System

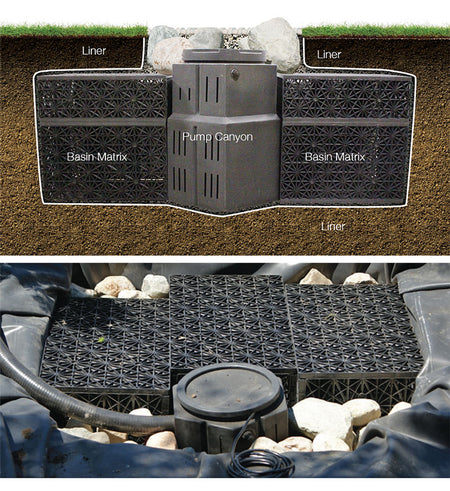

Pondless Waterfall Diagram
How it Works

After digging a basin and installing our Basin Matrix & Liner, it's simple to install the Pump & Check Valve Assembly inside a Pump Canyon®. The pump pushes water through the PVC Flex Hose up to the Cascade Box. From there, water flows back into the lined basin and continues to recirculate

Easy Installation with Our Kits

Step 1. Layout appropriate Basin Matrix and Pump Canyon configuration. Outline area with spray paint. Excavate to required size and depth.

Step 2. Install Underliner first, then Rubber Liner. Place Pump Canyon® and Matrix Boxes on top of the liner. Backfill outside the lined basin area.

Step 3. Expand liner up your incline and place Cascade Box on liner over leveled area at the top.

Step 4. Place Pump in the Pump Canyon®. Connect Plumbing from Pump to Casade Box.

Step 5. Cover Matrix and Pump Canyon® with decorative stone. Stack rocks to build the waterfall and stream. Fill with water and plug-in Pump to start.

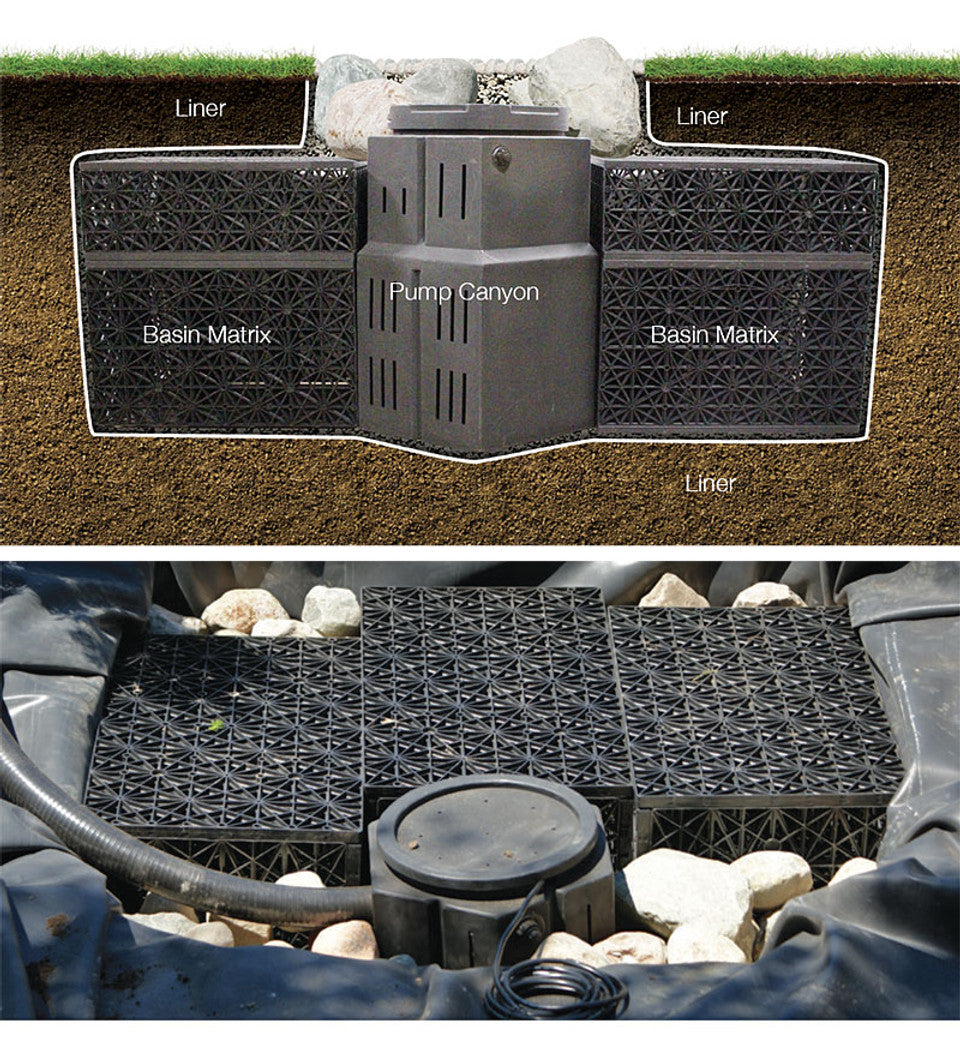

Pondless Waterfall Diagram
