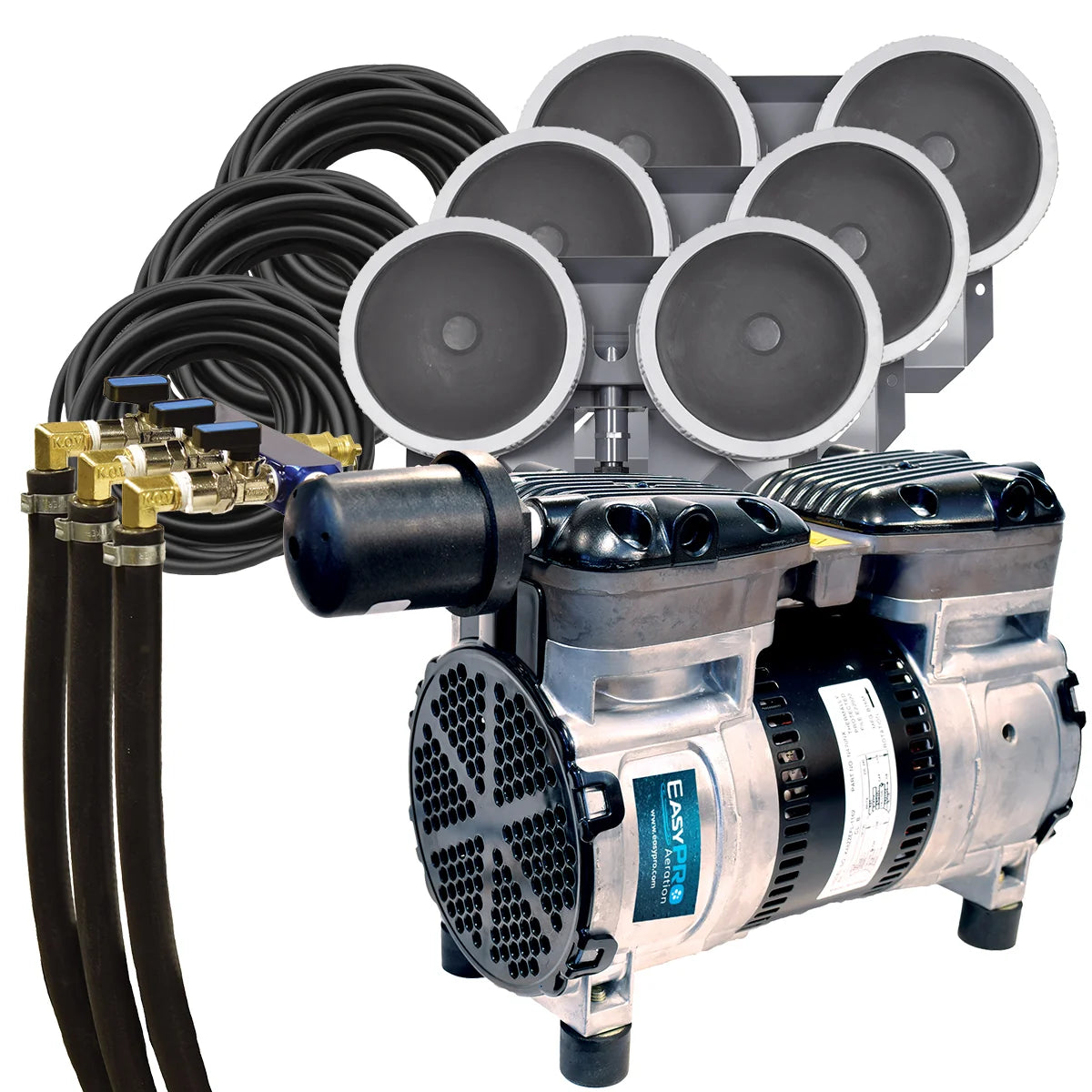

EasyPro PA66W Rocking Piston Pond Aeration System- 1/2 HP Kit with Quick Sink Tubing and Diffusers
Professional 1/2 HP Rocking Piston Pond Aeration System
The EasyPro PA66W Rocking Piston Pond Aeration System is a powerful, professional-grade aeration solution designed for large ponds and lakes. Featuring a robust 1/2 HP rocking piston compressor, this complete kit provides superior oxygen transfer and water circulation for ponds up to 3 acres.
Key Features
- 1/2 HP Rocking Piston Compressor: Powerful, energy-efficient motor delivers consistent airflow
- Large Pond Capacity: Aerates ponds up to 3 acres or 50 feet deep
- Quick Sink Weighted Tubing: Self-sinking airline eliminates the need for weights
- Complete Kit: Everything included for professional installation
- Three Configurations Available: No Cabinet, SC18 Post Mount Cabinet, and SC22 Ground Mount Cabinet
Available Configurations
PA66W features:
- 1/2 hp Stratus SRC50 Gen 2 compressor with two year warranty
- Three valve manifold with pressure relief
- Valved outlet with heat reducing hose and 3/8″ connections
- Three QS2 Quick Sink self weighted dual head air diffusers
- 300′ 3/8″ Quick Sink weighted tubing
- Approximately 1.5 cfm of air flow per diffuser
- Typical operation cost of $0.86 per 24 hours at .09¢ per kWh, actual cost may vary
- PA66W requires weather protection for the compressor
PA66DP Sentinel Deluxe Aeration System includes:
- SRC50SS Stratus™ SRC 1/2 hp Air Compressor with Sound Shield™ pre-installed
- SC18 Deluxe 18″ Locking Cabinet that can be post or ground mounted – with noise reducing foam pre-installed
- Cabinet hardware for either post mounted OR ground mounted cabinet placement!
- Valved outlet assembly pre-installed
- Pressure gauge pre-installed
- Pressure relief valve pre-installed
- Cooling fan pre-installed
- Electrical box/outlet pre-installed and ready for your incoming power line
- Heat reducing hose and 3/8″ connections
- Three QS2 QuickSink Weighted Diffusers (dual head) – Approx. 2.2 cfm air flow per diffuser
- 300′ of 3/8″ QuickSink weighted tubing with fittings for connections
PA66D Sentinel Deluxe Aeration System includes:
- SRC50SS Stratus™ SRC 1/2 hp Air Compressor with Sound Shield™ pre-installed
- SC22 Deluxe 22" Ground Mount Locking Cabinet
- Cabinet hardware
- Noise reducing foam pre-installed
- Valved outlet assembly pre-installed
- Pressure gauge pre-installed
- Pressure relief valve pre-installed
- Cooling fan pre-installed
- Electrical box/outlet pre-installed and ready for your incoming power line
- Heat reducing hose and 3/8″ connections
- Three QS2 QuickSink Weighted Diffusers (dual head) – Approx. 2.2 cfm air flow per diffuser
- 300′ of 3/8″ QuickSink weighted tubing with fittings for connections
Typical operation cost of $0.86 per 24 hours at .09¢ per kWh, actual cost may vary. 2 Year Warranty on Compressor. 5 Year Warranty on Tubing, Diffusers and Cabinet.
Compressor w/Sound Shield Manual
FAQ
Q: How large of a pond will this aerate?
A: This 1/2 HP system aerates ponds up to 3 acres or 50 feet deep. Actual capacity depends on pond shape, depth, fish load, and desired oxygen levels.
Q: What is quick sink tubing?
A: Quick sink tubing is weighted airline that sinks on its own without requiring additional weights. This simplifies installation and creates a cleaner appearance.
Q: Is this difficult to install?
A: Installation requires running airline from the compressor to the pond and placing diffusers at the desired locations. While DIY installation is possible, professional installation ensures optimal diffuser placement and system performance.
Q: Can I run this year-round?
A: Yes, this system is designed for continuous year-round operation. Winter aeration prevents ice-over and maintains oxygen levels for fish.
Q: How much does this cost to operate?
A: Operating costs depend on your local electricity rates. The 1/2 HP compressor is energy-efficient, typically costing $20-40 per month to run continuously.
Q: How loud is the compressor?
A: Rocking piston compressors are relatively quiet and the included cabinet further reduces noise. Most installations place the compressor near the pond without noise concerns.
Q: Where should I place the diffusers?
A: Place diffusers in the deepest part of the pond for maximum circulation. For dual diffuser systems, space them apart to provide even coverage throughout the pond.
Q: What maintenance is required?
A: Minimal maintenance includes periodic inspection of airline connections, cleaning diffusers annually, and checking compressor operation. The rocking piston design is reliable and low-maintenance.
