EasyPro PA65D Sentinel Deluxe Aeration System – Complete PA65 System with Cabinet
Professional 1/2 HP Sentinel Deluxe Pond Aeration System w/Sound Shield
EasyPro PA65D and PA65DP Sentinel Deluxe Aeration System is a premium, professional-grade aeration solution for ponds up to 2 acres. Featuring a 1/2 HP Stratus SRC50 Gen 2 compressor in a deluxe aluminum cabinet, this complete system includes diffusers and quick sink tubing for professional installation.
Key Features
- 1/2 HP Stratus SRC50 Gen 2 Compressor: Powerful, reliable motor with 2-year warranty and sound shield preinstalled
- Deluxe Aluminum Cabinet: Locking cabinet with cooling fan. Choose from SC18 or SC22 cabinet
- Complete System: Includes two QS2 diffusers and 200ft quick sink tubing
- Pond Capacity: Up to 2 acres
- Energy Efficient: ~$0.86 per 24 hours at $0.09/kWh
- Two Configurations: Ground mount or post-mounted options
Available Configurations

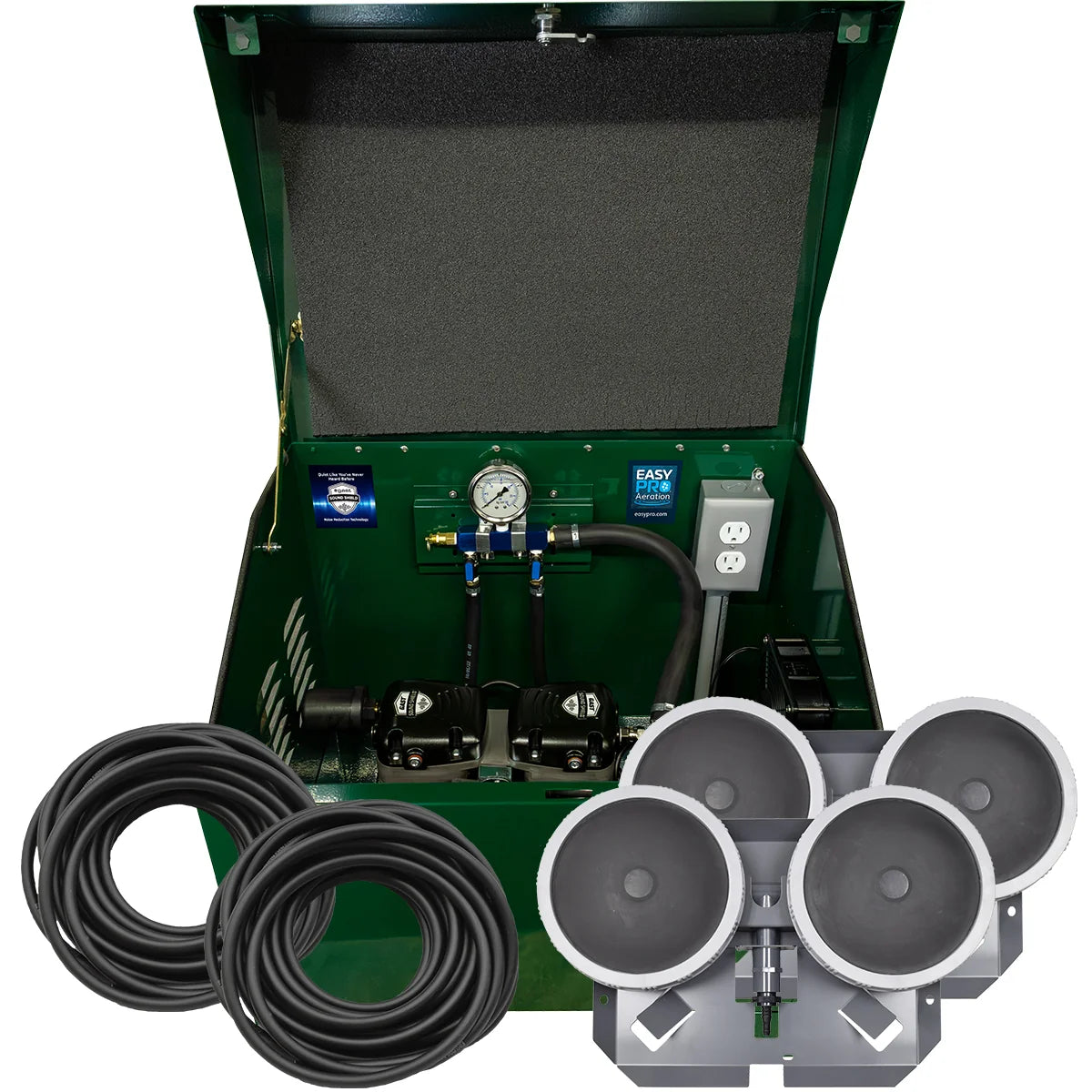

PA65D Sentinel Deluxe Aeration System includes:

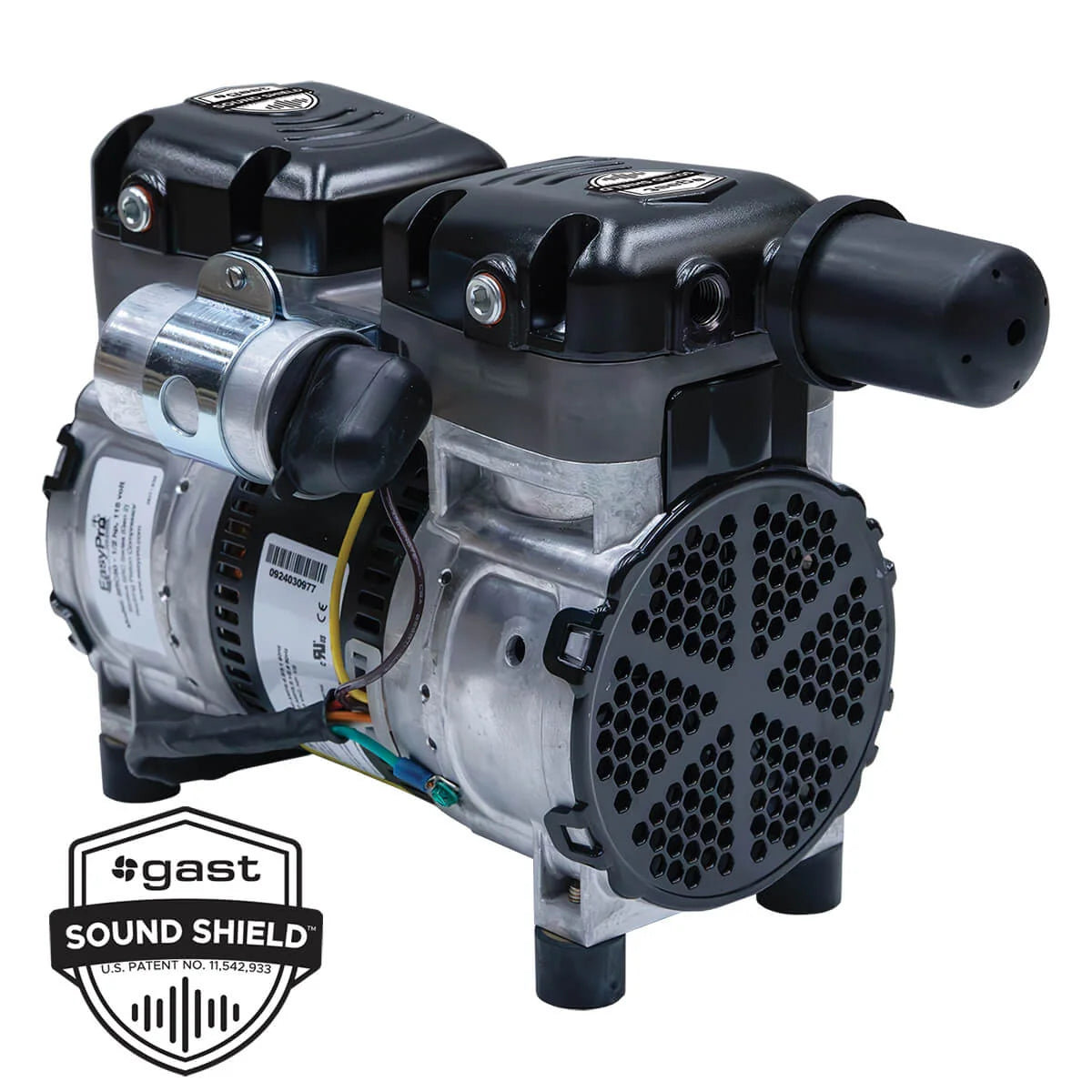

- SRC50SS Stratus™ SRC 1/2 hp Air Compressor with Sound Shield™ pre-installed
- SC22 Deluxe 22" Ground Mount Locking Cabinet
- Cabinet hardware
- Noise reducing foam pre-installed
- Valved outlet assembly pre-installed
- Pressure gauge pre-installed
- Pressure relief valve pre-installed
- Cooling fan pre-installed
- Electrical box/outlet pre-installed and ready for your incoming power line
- Heat reducing hose and 3/8″ connections
- Two QS2 QuickSink Weighted Diffusers (dual head) – Approx. 2.2 cfm air flow per diffuser
- 200′ of 3/8″ QuickSink weighted tubing with fittings for connections
PA65DP Sentinel Deluxe Aeration System includes:
- SRC50SS Stratus™ SRC 1/2 hp Air Compressor with Sound Shield™ pre-installed
- SC18 Deluxe 18″ Locking Cabinet that can be post or ground mounted – with noise reducing foam pre-installed
- Cabinet hardware for either post mounted OR ground mounted cabinet placement!
- Valved outlet assembly pre-installed
- Pressure gauge pre-installed
- Pressure relief valve pre-installed
- Cooling fan pre-installed
- Electrical box/outlet pre-installed and ready for your incoming power line
- Heat reducing hose and 3/8″ connections
- Two QS2 QuickSink Weighted Diffusers (dual head) – Approx. 2.2 cfm air flow per diffuser
- 200′ of 3/8″ QuickSink weighted tubing with fittings for connections
Typical operation cost of $0.86 per 24 hours at .09¢ per kWh, actual cost may vary. 2 Year Warranty on Compressor. 5 Year Warranty on Tubing, Diffusers and Cabinet.
Specifications
- Compressor: 1/2 HP Stratus SRC50 Gen 2
- Pond Capacity: Up to 2 acres
- Airflow: ~2.2 CFM per diffuser
- Tubing: 200ft of 3/8" Quick Sink weighted
- Diffusers: Two QS2 Quick Sink dual head
- Cabinet: Deluxe aluminum with cooling fan
- Warranty: 2 years compressor, 5 years diffusers/cabinet
- Weight: 113 lbs
FAQ
Q: Which configuration should I choose?
A: Choose PA65D for plug-and-play with 6' power cord. Choose PA65DP for post/ground mounting with hardwired connection.
Q: Are diffusers included?
A: Yes, both include two QS2 Quick Sink dual head air diffusers.
Q: How large of a pond will this aerate?
A: Up to 2 acres. Actual capacity depends on pond shape, depth, and fish load.
Q: Is this difficult to install?
A: No. PA65D plugs into GFCI outlet. PA65DP requires hardwired connection but includes mounting hardware.
Q: Can I run this year-round?
A: Yes, designed for continuous year-round operation with aluminum cabinet protection.
Q: How much does this cost to operate?
A: Approximately $0.86 per 24 hours at $0.09/kWh.
Q: What warranty is included?
A: 2-year warranty on compressor, 5-year warranty on diffusers and cabinet.
Q: What maintenance is required?
A: Minimal—periodic inspection of connections, annual diffuser cleaning, and compressor checks.
