Atlantic Triton 3-Way Diverter
Independent Flow Control for Multi-Fountain Installations
The Atlantic Triton 3-Way Diverter provides precise, independent flow control for up to three fountain elements from a single pump source. Engineered specifically for use with the FB4600 Fountain Basin and compatible pump vault systems, this compact manifold eliminates the need to access the pump chamber for flow adjustments, simplifying maintenance and allowing real-time tuning of your fountain display.

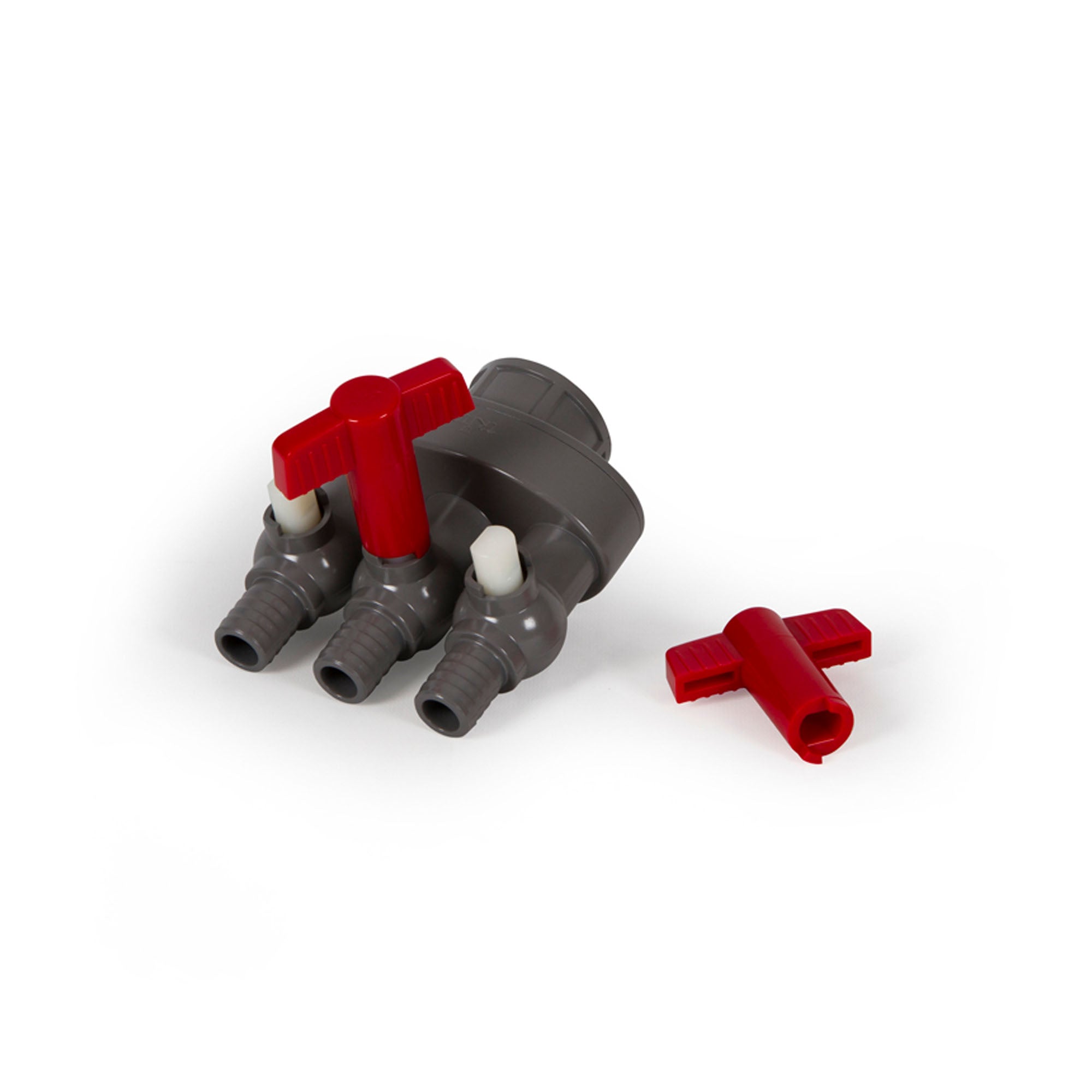

The 1.5" inlet accepts unrestricted flow from your pump, ensuring maximum hydraulic efficiency. Three independent ball valve outlets allow precise flow adjustment to each connected fountain element, giving you complete control over water distribution. Each ball valve features a removable handle, allowing you to lock settings once optimal flow is achieved or prevent unauthorized adjustments.

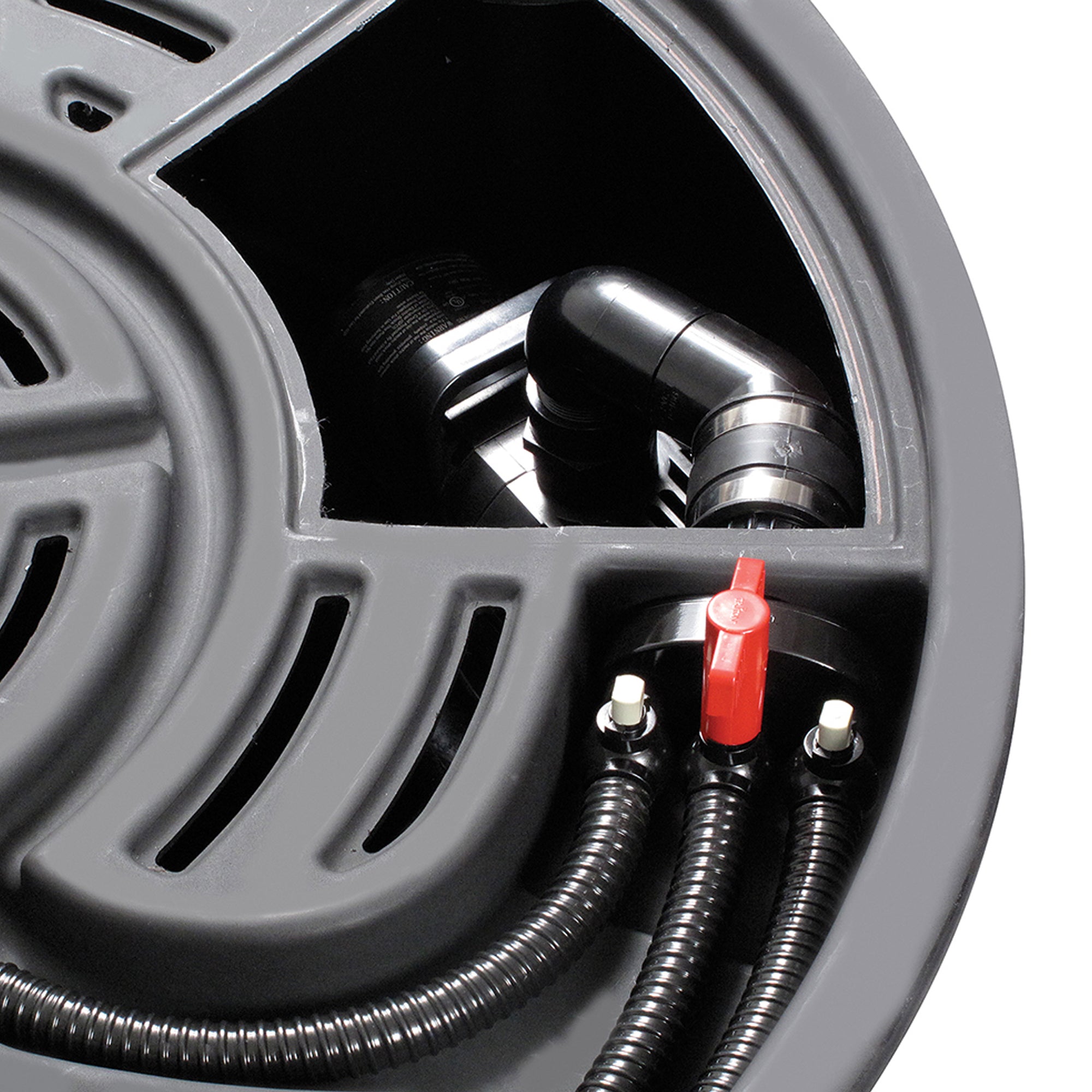

The compact footprint is specifically engineered to fit within pump vaults and fountain basins where space is at a premium, integrating seamlessly into the FB4600 Fountain Basin while keeping all plumbing concealed and organized.
Key Features
- Provides independent flow control to three fountain elements
- 1.5" inlet for unrestricted flow and minimal pressure loss
- Three ball valve outlets with removable handles
- Adjust flow without accessing pump chamber
- Compact design fits in pump vaults and fountain basins
- Engineered for use with FB4600 Fountain Basin
- Removable handles allow locked settings or tamper prevention
- Durable construction for long-term outdoor use

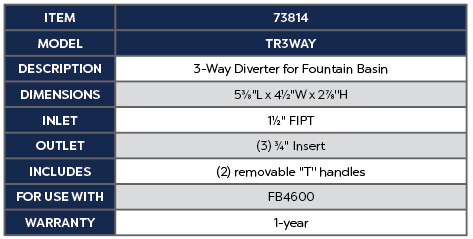

- SKU: 73814
- Weight: 0.9 lbs
Frequently Asked Questions
Q: Can I use the Triton 3-Way Diverter with systems other than the FB4600 Fountain Basin?
A: Yes. While designed to integrate seamlessly with the FB4600, the diverter can be used in any pump vault or basin system where space allows and 1.5" plumbing connections are compatible.
Q: Do I need to use all three outlets?
A: No. You can use one, two, or all three outlets depending on your fountain configuration. Unused outlets can be capped off.
Q: Can I adjust flow while the pump is running?
A: Yes. The ball valves allow real-time flow adjustment while the system is operating, making it easy to fine-tune your fountain display without shutting down the pump.
Q: Why would I remove the valve handles?
A: Removable handles allow you to lock in optimal flow settings once established, preventing accidental adjustments. In public or commercial installations, removing handles prevents unauthorized tampering.
Q: Will the diverter reduce my pump's flow rate?
A: The 1.5" inlet minimizes flow restriction. However, dividing flow among multiple outlets will naturally reduce flow to each individual fountain element. Ensure your pump has adequate capacity for your total desired flow.
Q: Is the diverter compatible with pondless fountain systems?

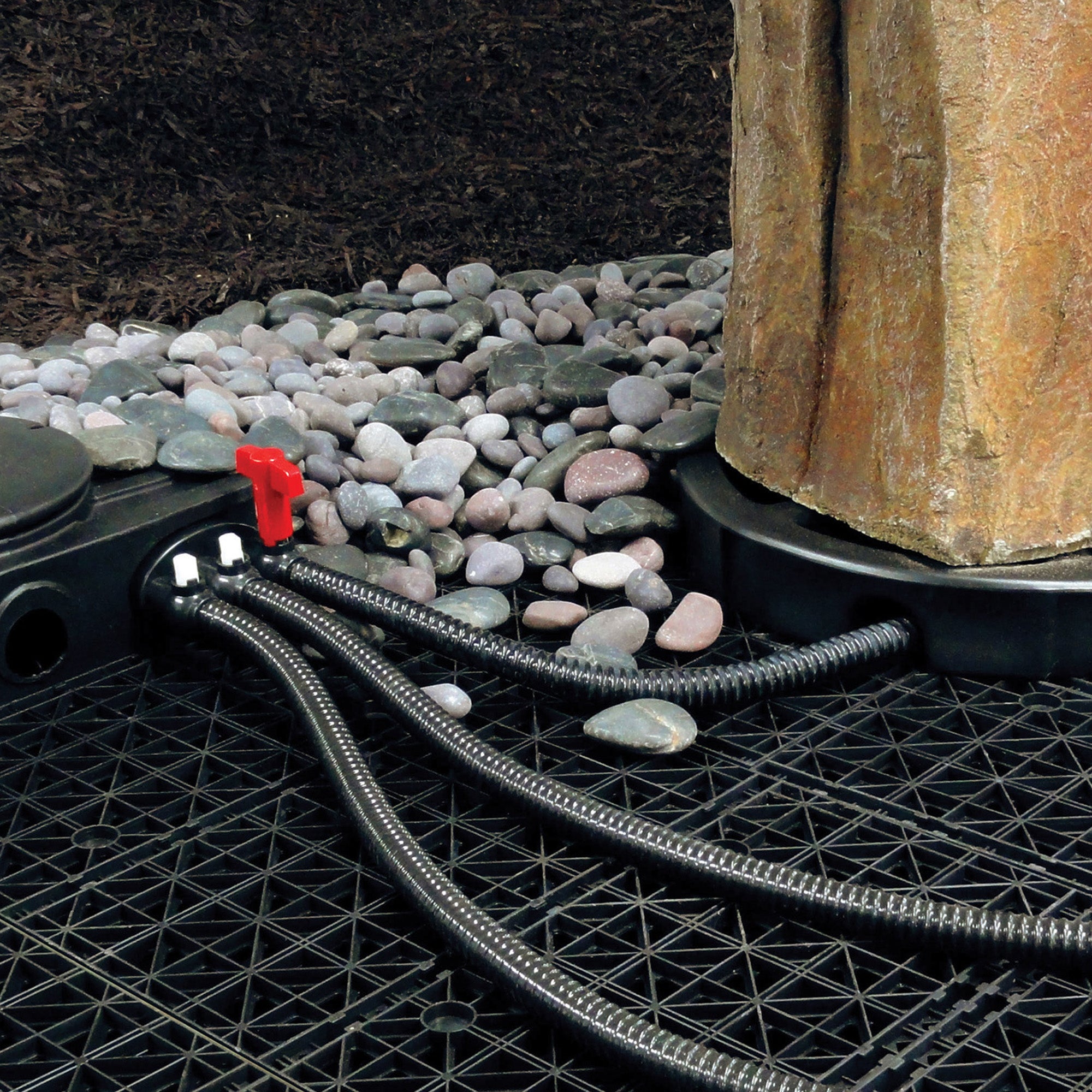

A: Yes. The Triton 3-Way Diverter is ideal for pondless fountain installations where multiple water features are powered by a single pump housed in an underground basin or vault.
